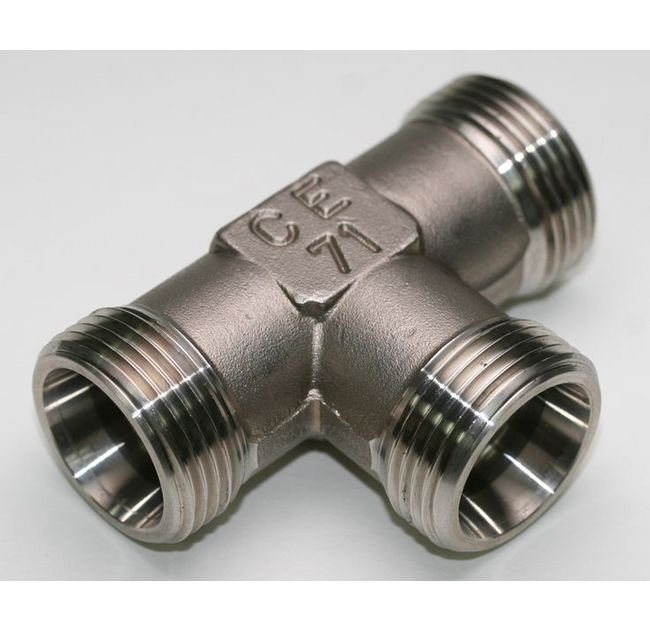

DIN 2353 Carbon Steel Equal Tee - Body Only
DIN 2353 Carbon Steel Equal Tee - Body Only
SKU:FIT-157e22
DIN 2353 Carbon Steel Equal Tee for precise, light-duty tube connections. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Carbon Steel Equal Tee - Body Only
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Carbon Steel Equal Tee - Body Only
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

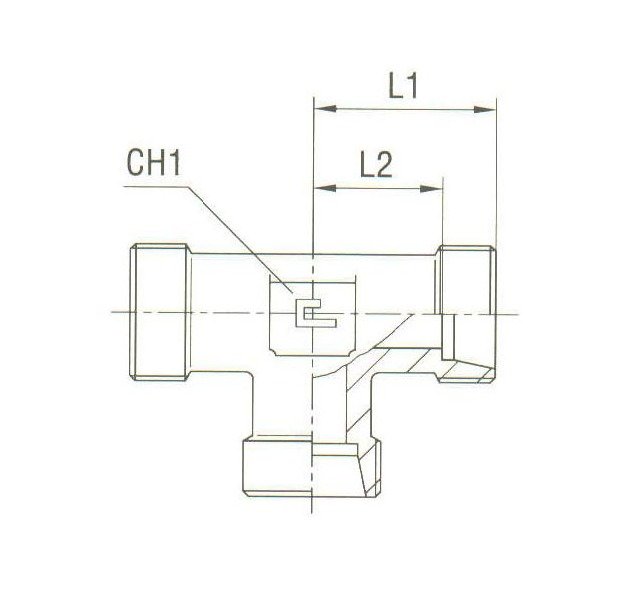

The DIN 2353 Carbon Steel Equal Tee - Body Only is designed for light-duty applications with a tube diameter of 22mm and a nominal operating pressure of 160 bar. Crafted to meet DIN 2353 standards, this Equal Tee ensures precise and secure connections. Its dimensions include L1: 35.0mm, L2: 27.5mm, and CH1: 27mm, guaranteeing reliable performance in various compression fitting installations.
Product Specifications
Specifications Ch1
27 mm
Specifications L1
35.0 mm
Specifications L2
27.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
