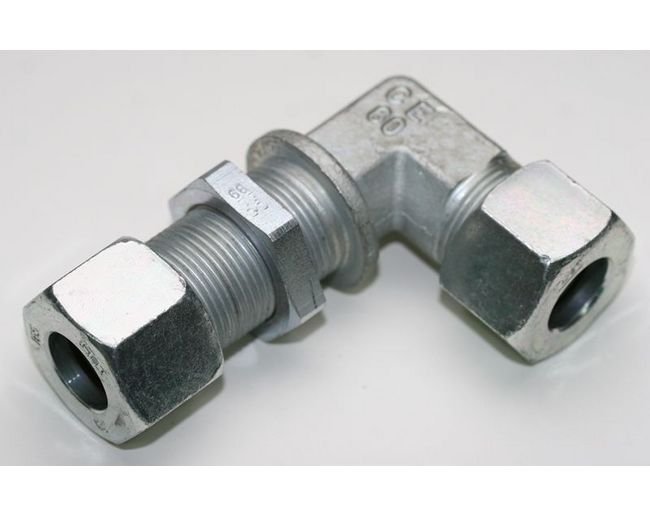

DIN 2353 Compression Bulkhead Elbow - Equipped B4 Ring, Carbon Steel, 28mm

Name: DIN 2353 Compression Bulkhead Elbow - Equipped B4 Ring, Carbon Steel, 28mm
Brand: World Wide Metric, Inc.
SKU: FIT-0ba6eb
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-0ba6eb

Premium Carbon Steel Bulkhead Elbow - 28mm, Light Duty, DIN 2353 Compliant

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

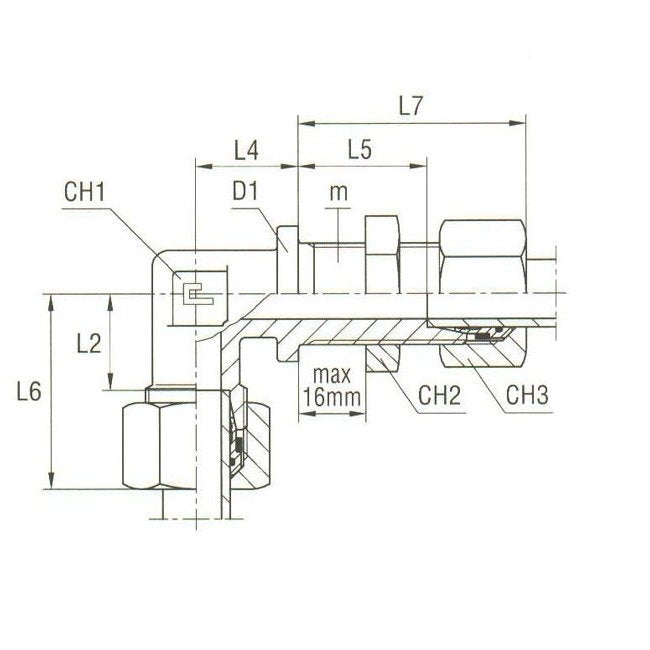

The Bulkhead Elbow with Equipped B4 Ring is a durable and reliable fitting designed for light-duty applications. Constructed from high-quality carbon steel, this fitting ensures superior performance under pressure. With a tube diameter of 28mm and a thread size of 36x2, it operates at a nominal pressure of 160 bar. Compliant with DIN 2353 standards, it features precise dimensions including L2: 30.5mm, L4: 34mm, L5: 35.5mm, L6: 38mm, L7: 52mm, D1: 42mm, CH1: 36mm, CH2: 46mm, and CH3: 41mm.

Product Specifications

Specifications Ch1

36 mm

Specifications Ch2

46 mm

Specifications Ch3

41 mm

Specifications D1

42 mm

Specifications L2

30.5 mm

Specifications L4

34 mm

Specifications L5

35.5 mm

Specifications L6

38 mm

Specifications L7

52 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

36x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm
