DIN 2353 Compression Bulkhead Union with B4 Ring, Carbon Steel - 18.0mm

Name: DIN 2353 Compression Bulkhead Union with B4 Ring, Carbon Steel - 18.0mm
Brand: World Wide Metric, Inc.
SKU: FIT-2ff903
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-2ff903

Premium DIN 2353 Compression Bulkhead Union for Light-Duty Applications

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bulkhead Connection - Equipped B4 Ring is a high-quality fitting designed for light-duty applications. Constructed from durable carbon steel, it offers reliability with a pressure rating of 315 bar. This compression fitting features precise dimensions meeting DIN 2353 standards, ensuring a secure tube connection. With an equal design and a tube diameter of 18.0mm, it provides a dependable solution for various industrial needs.

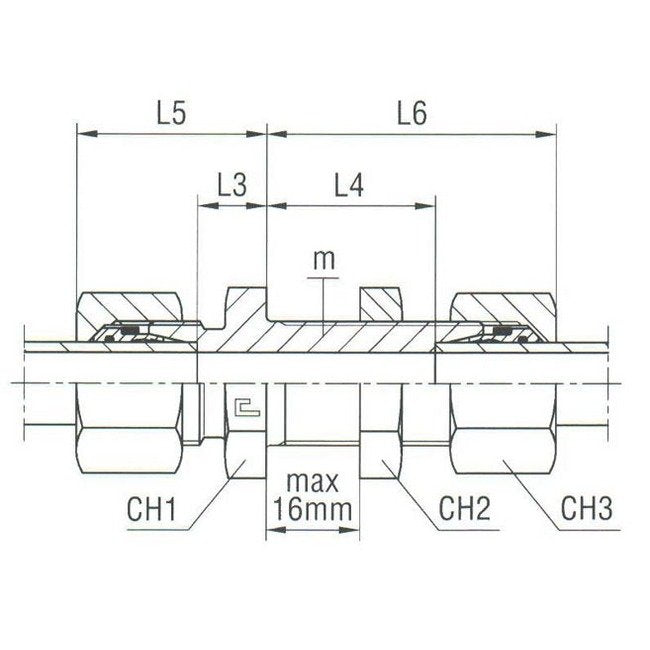

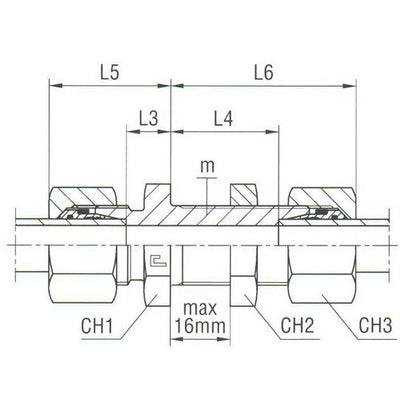

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications Ch3

32 mm

Specifications L3

13.5 mm

Specifications L4

32.5 mm

Specifications L5

30 mm

Specifications L6

49 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

26x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm
