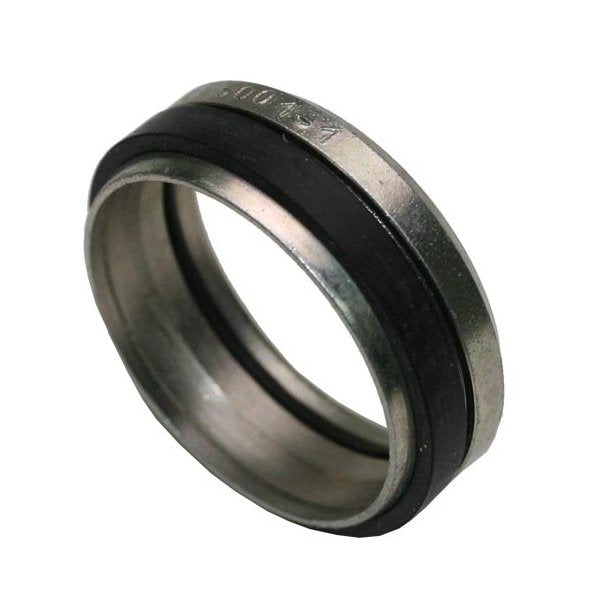

DIN 2353 Compression Cutting Ring B4 (42.0mm)
DIN 2353 Compression Cutting Ring B4 (42.0mm)
SKU:FIT-97d29f
High-quality Stainless Steel cutting ring designed for hydraulic systems. DIN 2353 compliant. Reliable performance under light-duty pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Cutting Ring B4 (42.0mm)
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Cutting Ring B4 (42.0mm)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cutting Ring B4 is a high-quality compression fitting essential for hydraulic systems. Crafted from durable Stainless Steel, this cutting ring ensures reliable performance under light-duty operations at a nominal pressure of 160 bar. With precise dimensions including a tube diameter of 42.0mm and D2 measurement of 48mm, it complies with DIN 2353 standards, guaranteeing superior quality and compatibility.
Product Specifications
Specifications D2
48 mm
Specifications L1
13.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
