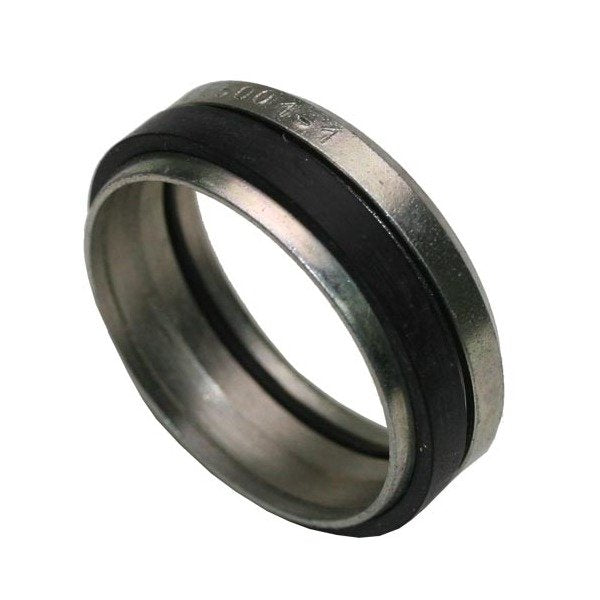

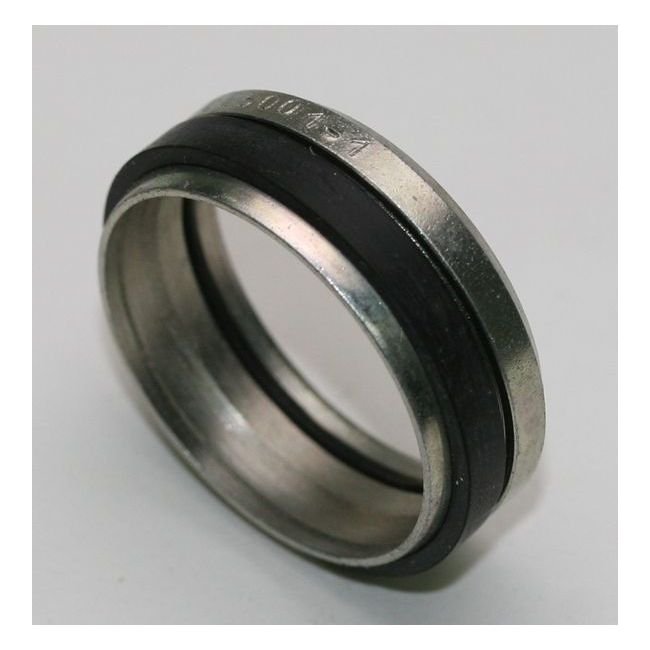

DIN 2353 Compression Cutting Ring B4 - 6.0mm Stainless Steel
DIN 2353 Compression Cutting Ring B4 - 6.0mm Stainless Steel
SKU:FIT-abea6d
High-quality stainless steel cutting ring for reliable tube connections. Operates at 315 bar. Compliant with DIN 2353.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Cutting Ring B4 - 6.0mm Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Cutting Ring B4 - 6.0mm Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cutting Ring B4 is a reliable and durable compression fitting featuring a light-duty design suitable for various applications. With a nominal operating pressure of 315 bar, this cutting ring is crafted from high-quality stainless steel. Compliant with DIN 2353 standards, it ensures precise tube connections for enhanced performance and longevity.

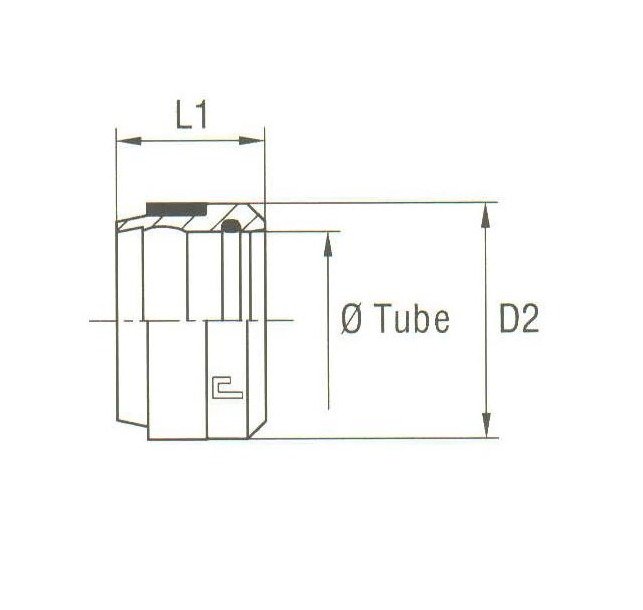

Product Specifications
Specifications D2
10 mm
Specifications L1
9.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
