DIN 2353 Compression Equal Cross - Carbon Steel, 10.0mm

Name: DIN 2353 Compression Equal Cross - Carbon Steel, 10.0mm
Brand: World Wide Metric, Inc.
SKU: FIT-e81b86
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-e81b86

DIN 2353 Compression Equal Cross - Carbon Steel, 10.0mm, Light Duty, 315 bar

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

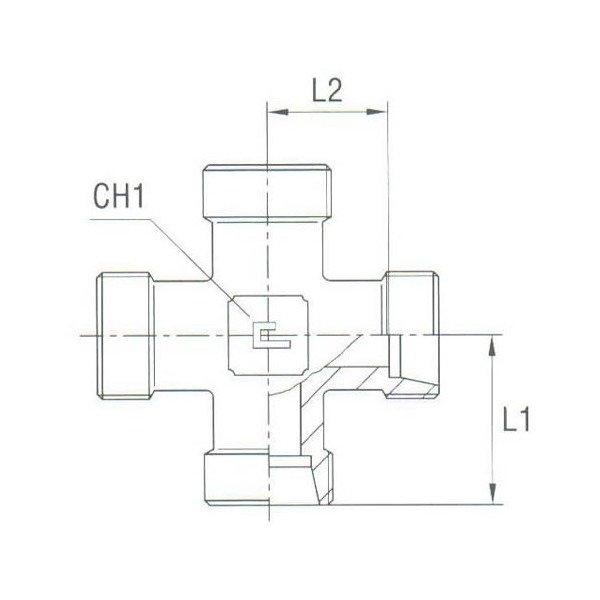

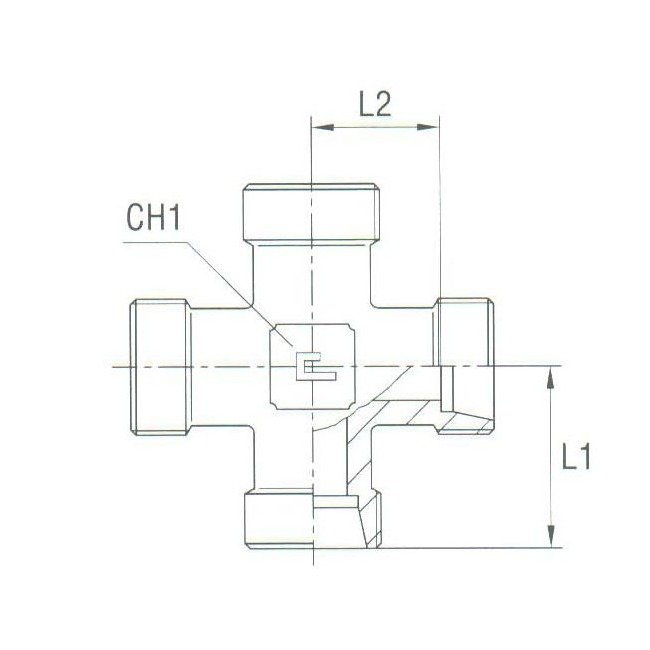

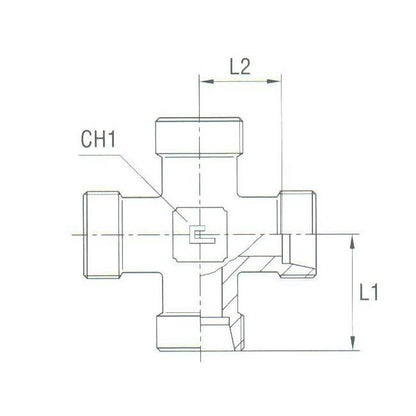

The Equal Cross - Body Only is a versatile fitting designed for light duty applications, with a tube diameter of 10.0mm and a nominal operating pressure of 315 bar. Constructed from high-quality carbon steel, this fitting meets DIN 2353 standards for reliable performance. Its compact design with precise dimensions including L1: 22mm, L2: 15mm, and CH1: 14mm ensures easy installation and a secure fit. Ideal for various industrial and hydraulic systems, this equal cross fitting guarantees durability and efficiency in operation.

Product Specifications

Specifications Ch1

14 mm

Specifications L1

22 mm

Specifications L2

15 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

DIN 2353 Compression Equal Cross - Carbon Steel, 10.0mm
