DIN 2353 Compression Equal Cross - Carbon Steel 12.0mm
DIN 2353 Compression Equal Cross - Carbon Steel 12.0mm
SKU:FIT-a29316
High-quality carbon steel Equal Cross for precise pressure applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Compression Equal Cross - Carbon Steel 12.0mm
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Equal Cross - Carbon Steel 12.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

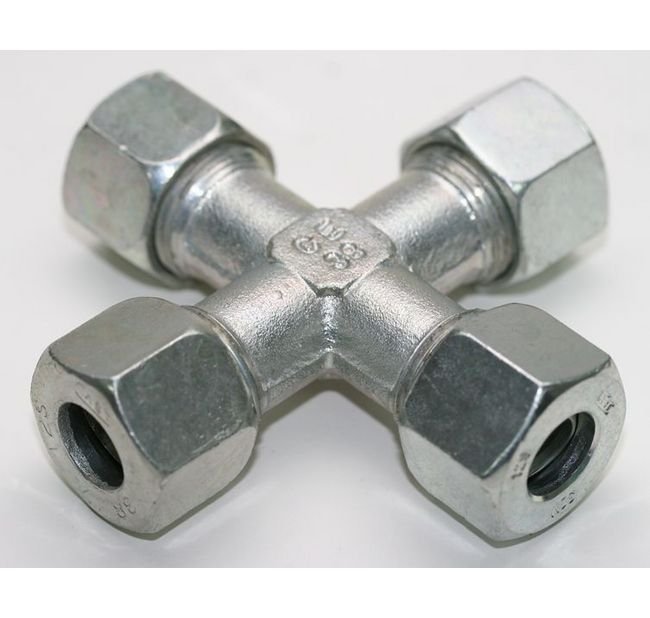

The DIN 2353 Compression Equal Cross - Carbon Steel 12.0mm is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality carbon steel, it offers durability and reliability. Meet strict compliance with DIN 2353 standards, ensuring performance excellence in various industrial settings.

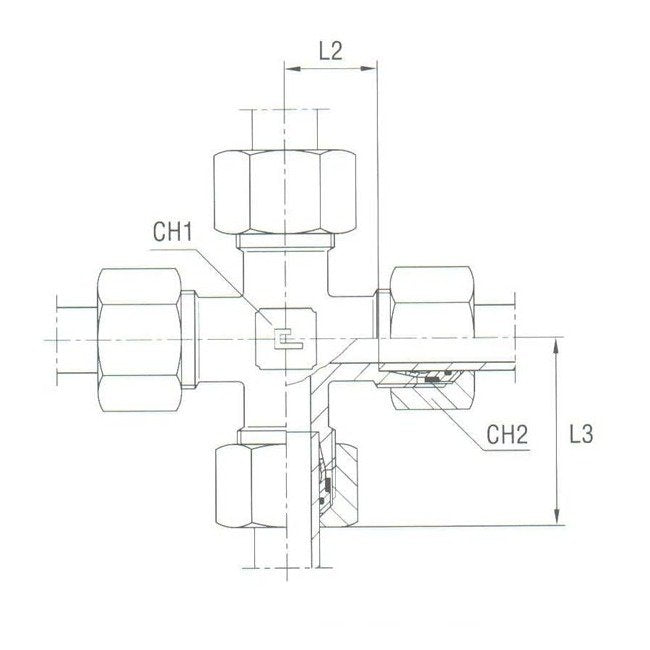

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
22 mm
Specifications L2
17.0 mm
Specifications L3
32.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
