DIN 2353 Compression Equal Cross - Carbon Steel
DIN 2353 Compression Equal Cross - Carbon Steel
SKU:FIT-550db7
High-quality Equal Cross fitting for hydraulic systems, carbon steel, DIN 2353 compliant, 6.0mm tube diameter, 315 bar pressure.
Regular price
$28.50
Regular price
Sale price
$28.50
Unit price
per
Initiate Order
DIN 2353 Compression Equal Cross - Carbon Steel
$28.50
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Equal Cross - Carbon Steel
$28.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

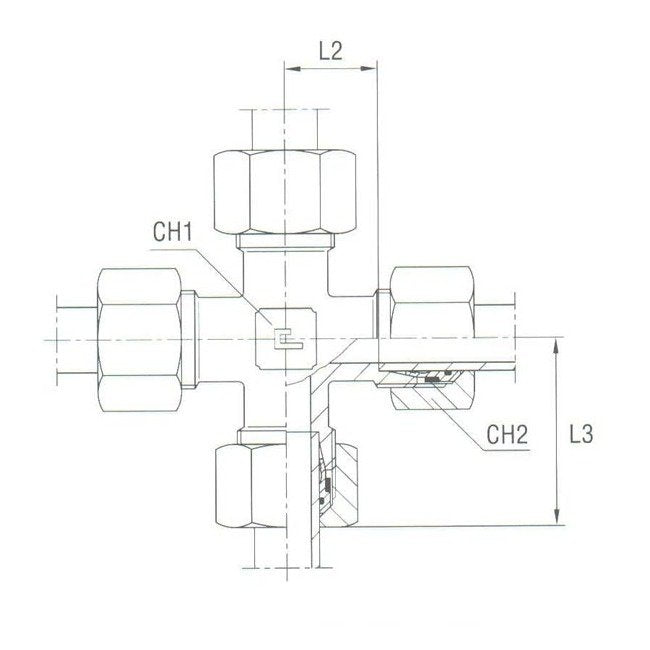

The Equal Cross - Equipped B4 Ring is designed for precision performance in hydraulic systems. Made of carbon steel, it ensures light-duty operations with a nominal operating pressure of 315 bar. With compliance to DIN 2353 standards, this fitting guarantees reliability and durability. Its tube diameter of 6.0mm and precise measurements provide a seamless fit, while the CH1 and CH2 dimensions offer secure connections. Ideal for institutional and government applications requiring high-quality fittings.
Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
12.0 mm
Specifications L3
27.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
