DIN 2353 Compression Equal Cross - Carbon Steel, 8.0mm
DIN 2353 Compression Equal Cross - Carbon Steel, 8.0mm
SKU:FIT-ff522e
Reliable DIN 2353 Compression Equal Cross for light duty hydraulic systems. Carbon steel, 8.0mm tube, 315 bar pressure, DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Equal Cross - Carbon Steel, 8.0mm
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Equal Cross - Carbon Steel, 8.0mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

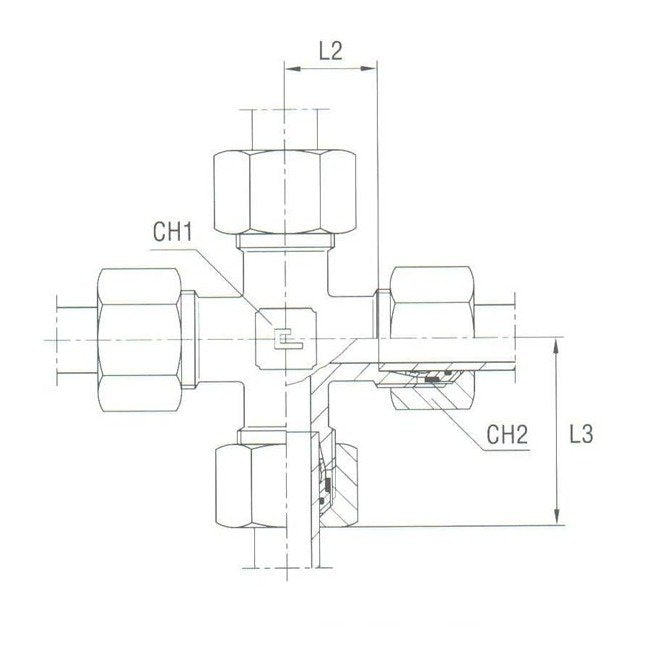

The Equal Cross - Equipped B4 Ring provides a reliable solution for light duty hydraulic systems. Constructed from durable carbon steel, this fitting ensures a secure connection with a tube diameter of 8.0mm and a nominal operating pressure of 315 bar. Compliant with DIN 2353 standards, it offers precise dimensions with L2: 14.0mm, L3: 29.0mm, CH1: 12mm, and CH2: 17.0mm, meeting the stringent requirements of institutional buyers.
Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
17.0 mm
Specifications L2
14.0 mm
Specifications L3
29.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
