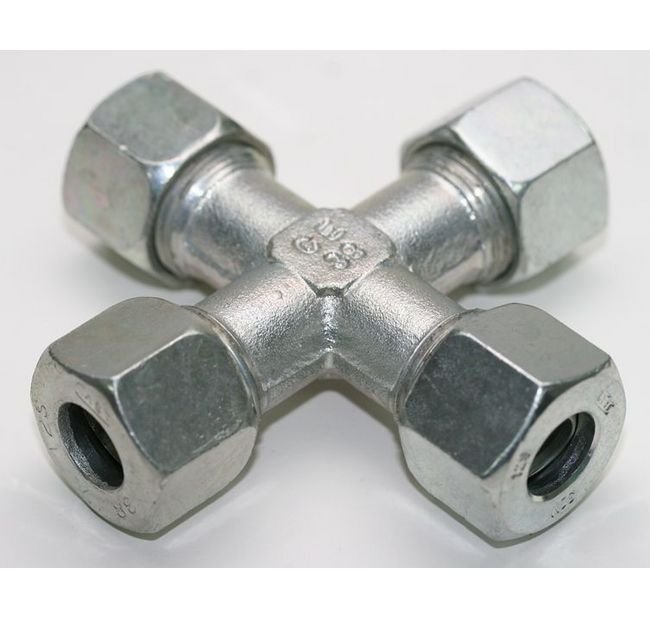

DIN 2353 Compression Equal Cross with Equipped B4 Ring

Name: DIN 2353 Compression Equal Cross with Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-6a7fd6
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-6a7fd6

Precision-crafted DIN 2353 Compression Equal Cross with Equipped B4 Ring for reliable, light-duty hydraulic applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

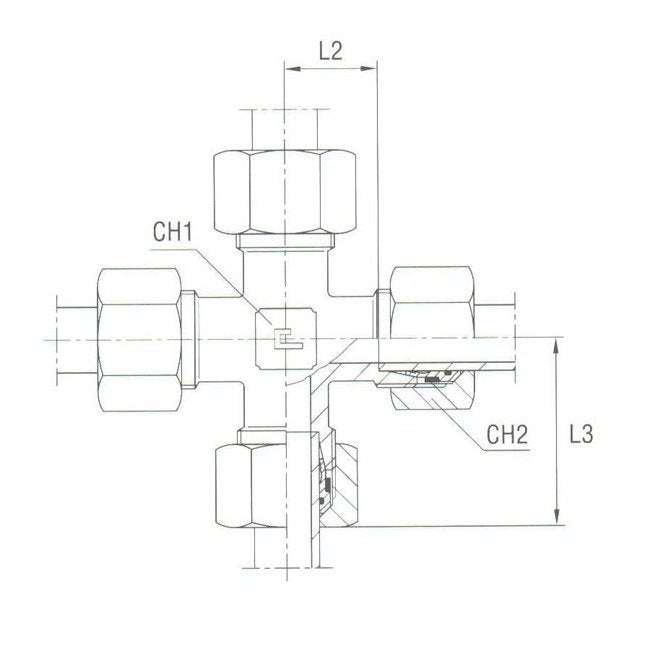

The DIN 2353 Compression Equal Cross with Equipped B4 Ring is designed for light-duty applications, constructed from durable carbon steel. With a tube diameter of 10.0mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance. Meeting DIN 2353 standards, it features precise dimensions (L2: 15mm, L3: 30.0mm, CH1: 14mm, CH2: 19.0mm), making it ideal for various hydraulic systems.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

19.0 mm

Specifications L2

15 mm

Specifications L3

30.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm
