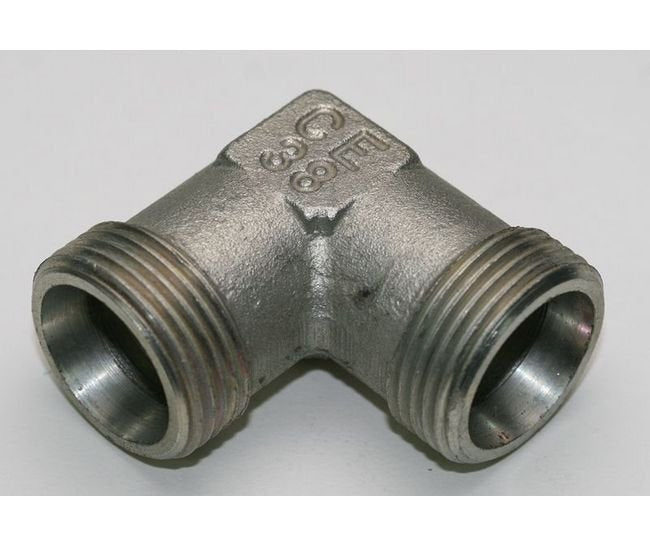

DIN 2353 Compression Equal Elbow - Carbon Steel (10.0 mm)
DIN 2353 Compression Equal Elbow - Carbon Steel (10.0 mm)
SKU:FIT-7aea44
DIN 2353 Compression Equal Elbow - Carbon Steel (10.0 mm) for reliable and precise hydraulic connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Equal Elbow - Carbon Steel (10.0 mm)
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Equal Elbow - Carbon Steel (10.0 mm)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

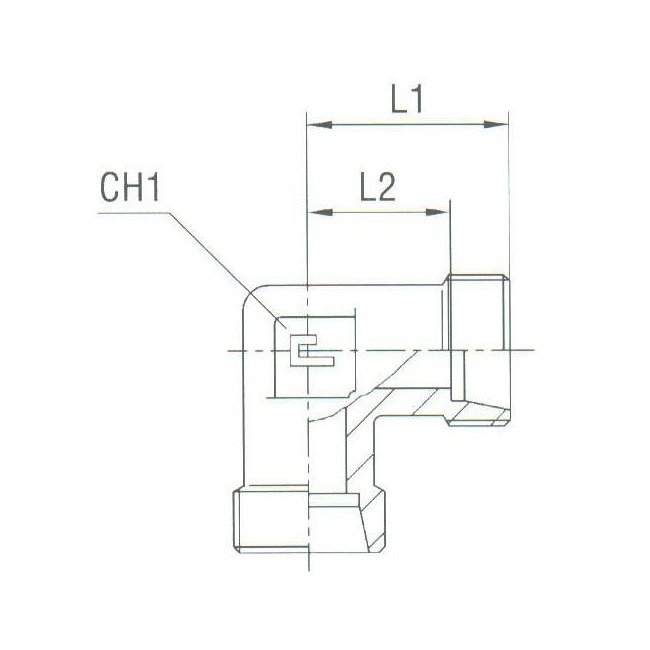

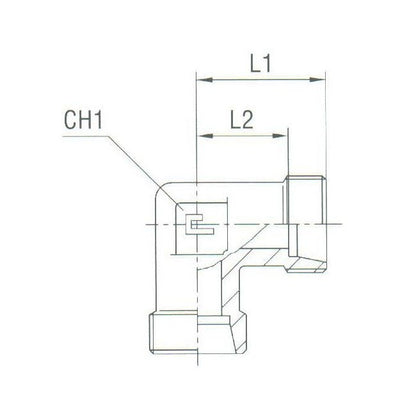

The DIN 2353 Compression Equal Elbow Body is designed for light duty hydraulic applications. Constructed from high-quality carbon steel, it ensures durability and reliability under pressure. With a tube diameter of 10.0 mm and a nominal operating pressure of 315 bar, this elbow fitting meets DIN 2353 standards, offering precise functionality. The L1 dimension is 22 mm, L2 is 15 mm, and CH1 is 14 mm, providing a perfect fit for various hydraulic systems.
Product Specifications
Specifications Ch1
14 mm
Specifications L1
22 mm
Specifications L2
15 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
