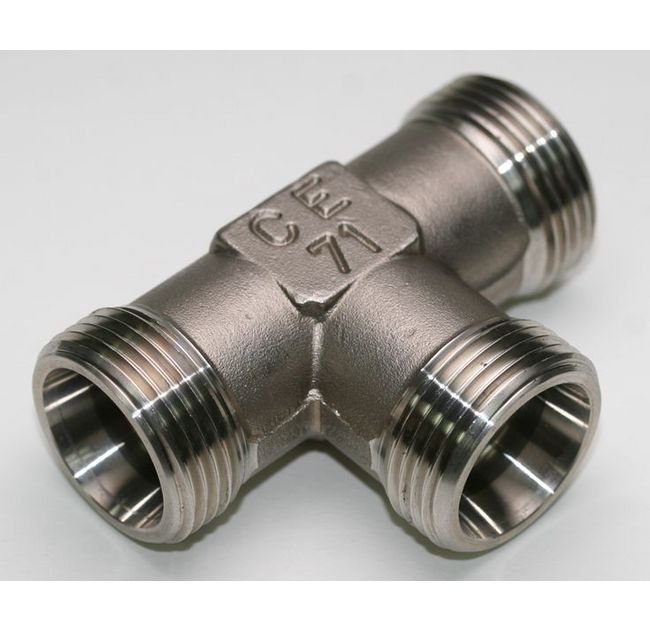

DIN 2353 Compression Equal Tee Body - Carbon Steel
DIN 2353 Compression Equal Tee Body - Carbon Steel
SKU:FIT-85e536
High-quality Carbon Steel Equal Tee for DIN 2353 Compression Fittings, 8.0mm Tube Diameter, 315 bar Pressure
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
DIN 2353 Compression Equal Tee Body - Carbon Steel
$22.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Equal Tee Body - Carbon Steel
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

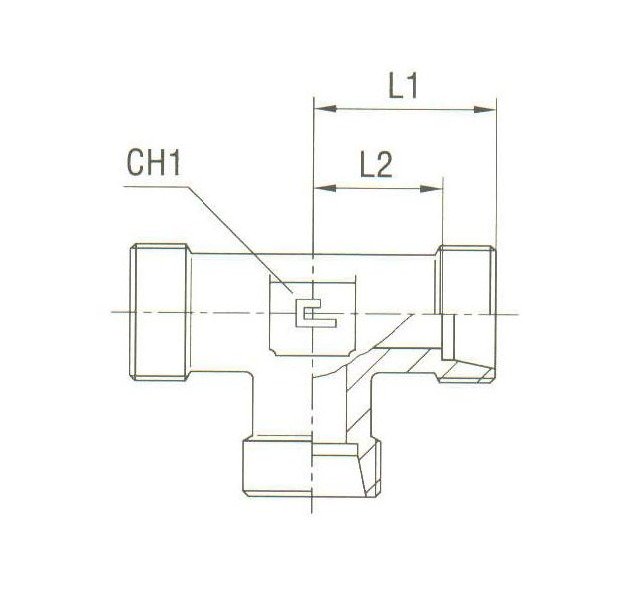

The DIN 2353 Compression Equal Tee Body offers a robust solution for light-duty applications. Crafted from high-quality carbon steel, this fitting ensures durability and reliability. With a tube diameter of 8.0mm and a nominal operating pressure of 315 bar, it meets stringent DIN 2353 standards. The precise dimensions of L1: 21.0mm, L2: 14.0mm, and CH1: 12mm guarantee a secure fit and efficient performance.
Product Specifications
Specifications Ch1
12 mm
Specifications L1
21.0 mm
Specifications L2
14.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
