DIN 2353 Compression Fitting Cutting Ring B3 - Carbon Steel, 12.0mm
DIN 2353 Compression Fitting Cutting Ring B3 - Carbon Steel, 12.0mm
SKU:FIT-e69097
High-quality DIN 2353 Compression Fitting Cutting Ring B3 for light-duty applications, 315 bar pressure, carbon steel construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Fitting Cutting Ring B3 - Carbon Steel, 12.0mm
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Fitting Cutting Ring B3 - Carbon Steel, 12.0mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

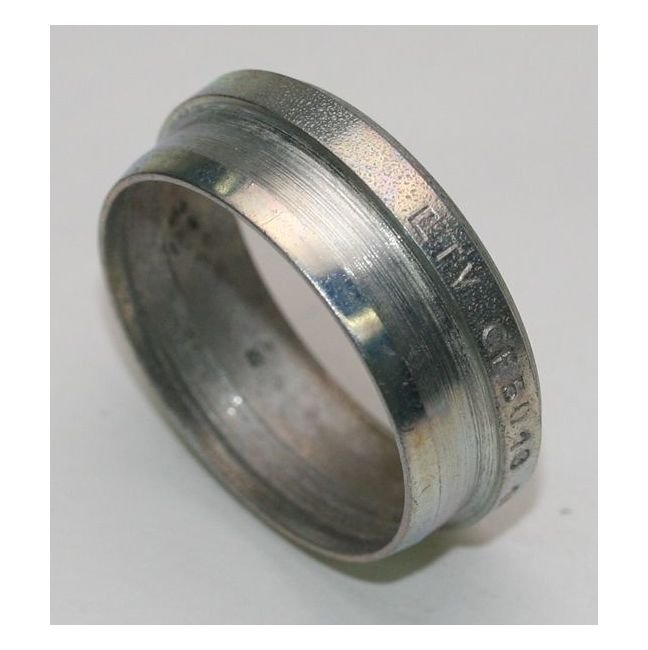

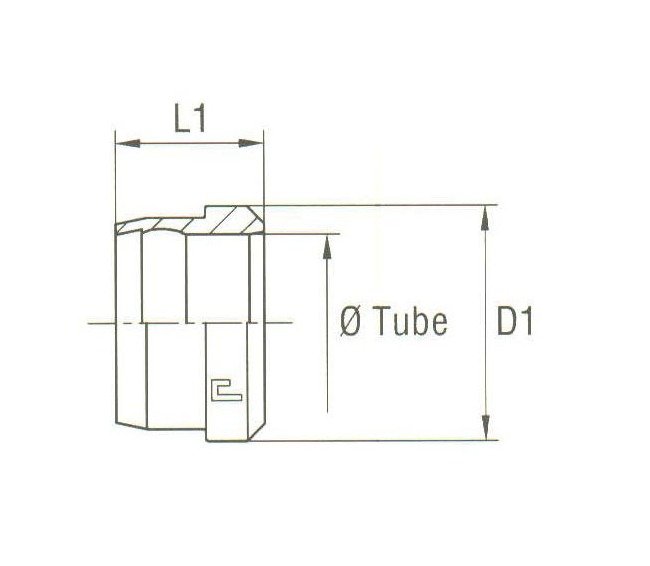

The Cutting Ring B3 is a high-quality compression fitting designed for light-duty applications, with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this cutting ring ensures reliable performance and longevity. Meeting DIN 2353 standards, it guarantees precise tube connections with a tube diameter of 12.0mm, L1 of 10.0mm, and D1 of 16mm, making it ideal for various industrial settings.
Product Specifications
Specifications D1
16 mm
Specifications L1
10.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
