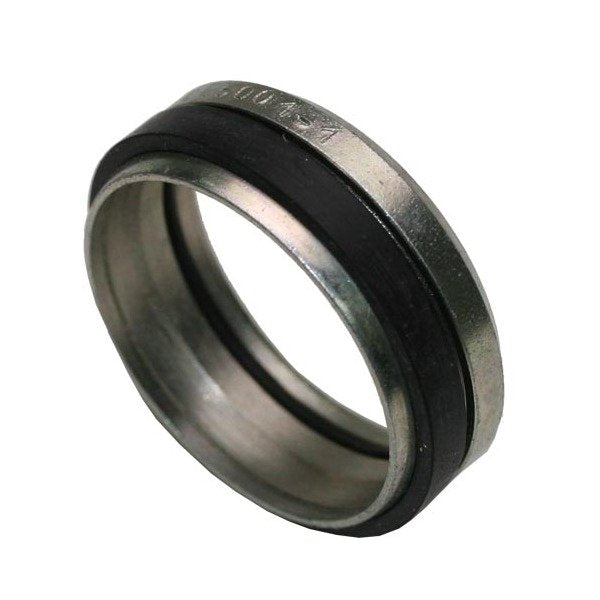

DIN 2353 Compression Fitting - Cutting Ring B4, Stainless Steel, 22mm Tube Diameter
DIN 2353 Compression Fitting - Cutting Ring B4, Stainless Steel, 22mm Tube Diameter
SKU:FIT-a59105
Premium stainless steel cutting ring for light-duty applications, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Compression Fitting - Cutting Ring B4, Stainless Steel, 22mm Tube Diameter
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Fitting - Cutting Ring B4, Stainless Steel, 22mm Tube Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cutting Ring B4 is a premium compression fitting designed for light-duty applications with a nominal operating pressure of 160 bar. Crafted from high-quality stainless steel, this cutting ring excels in performance and durability. With precise dimensions of L1: 10.5mm and D2: 27mm, it meets DIN 2353 standards, ensuring reliability and safety in fluid system connections. Ideal for industrial and institutional use, this fitting guarantees leak-free connections and long-term functionality.
Product Specifications
Specifications D2
27 mm
Specifications L1
10.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
