DIN 2353 Compression Fitting Equal Cross B4 Ring
DIN 2353 Compression Fitting Equal Cross B4 Ring
SKU:FIT-aa45f6
Durable DIN 2353 Compression Fitting for 18.0mm tubes. Light-duty with 315 bar operating pressure. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Compression Fitting Equal Cross B4 Ring
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Compression Fitting Equal Cross B4 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

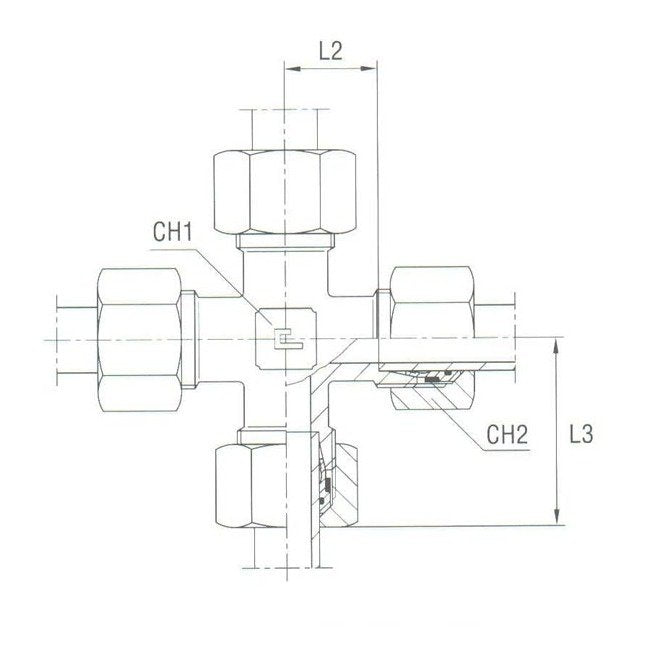

The Equal Cross - Equipped B4 Ring is a reliable light-duty fitting designed for precise compression applications. Crafted from durable carbon steel, this fitting ensures secure connections for tubes with a diameter of 18.0mm. With a nominal operating pressure of 315 bar, it meets DIN 2353 standards, guaranteeing performance and safety. Its dimensions, including L2 at 23.5mm, L3 at 40mm, CH1 at 24mm, and CH2 at 32mm, make it versatile for various setups, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
32 mm
Specifications L2
23.5 mm
Specifications L3
40 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
