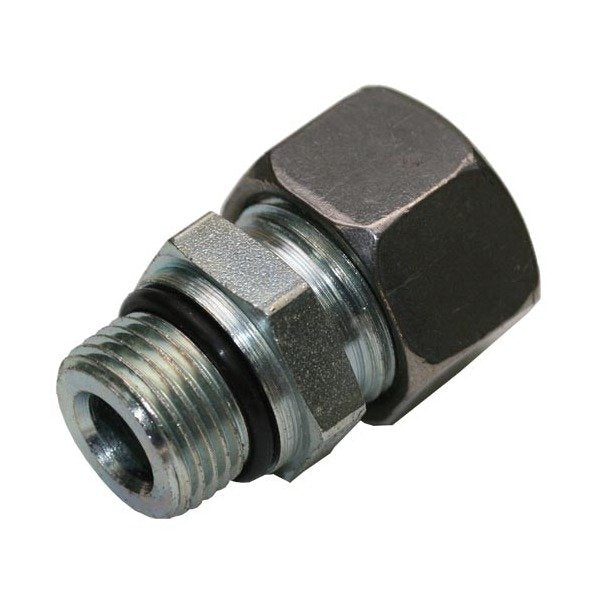

DIN 2353 Compression Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring

Name: DIN 2353 Compression Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-9b4fab
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-9b4fab

High-performance stainless steel Male Stud Coupling with precise UNF/UN-2A threading, ideal for light-duty applications. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN 2353 Compression Male Stud Coupling features a durable stainless steel construction, designed for light-duty applications with a nominal operating pressure of 315 bar. With a tube diameter of 12.0 mm and precise dimensions as per UNF/UN-2A standard, this coupling ensures secure connections. Equipped with a B3 ring for enhanced sealing, it meets stringent DIN 2353 standards, making it ideal for industrial use.

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications D1

21.8 mm

Specifications L2

12.9 mm

Specifications L3

11.1 mm

Specifications L4

27.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Specifications W Thread Size

3/4-16
