DIN 2353 Compression Stainless Steel Equal Cross

Name: DIN 2353 Compression Stainless Steel Equal Cross
Brand: World Wide Metric, Inc.
SKU: FIT-8df9cc
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-8df9cc

Enhance your fluid systems with our stainless steel Equal Cross fitting, designed for light-duty applications. Meet DIN 2353 standards with precision and reliability.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

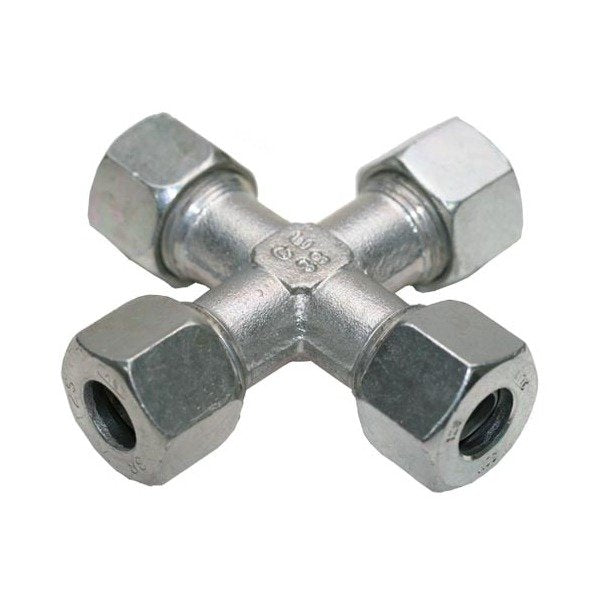

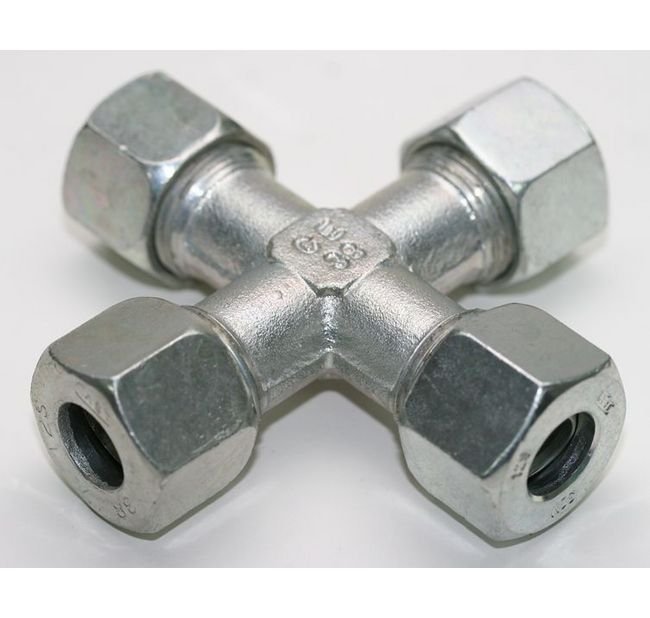

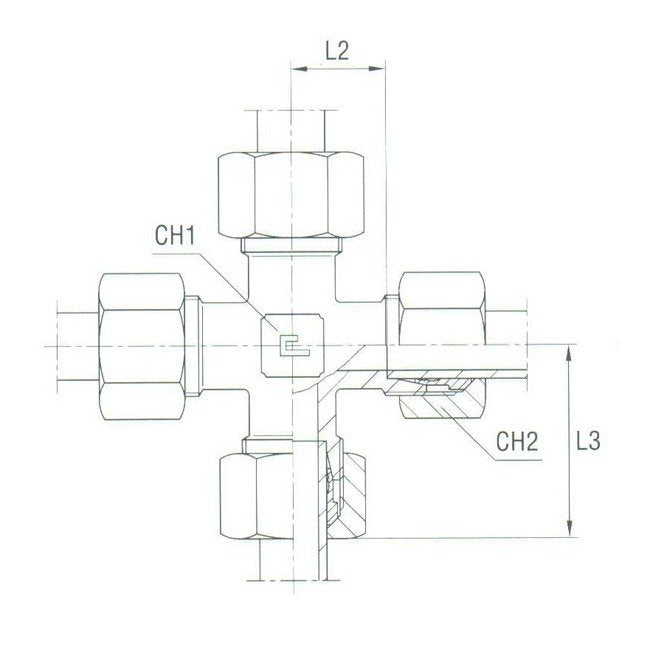

The Equal Cross - Equipped B3 Ring, part of our DIN 2353 Compression Fittings line, is designed for light-duty applications. Crafted from stainless steel, it offers a tube diameter of 8.0mm and a nominal operating pressure of 315 bar. With precise dimensions meeting DIN 2353 standards, it features L2 of 14.0mm, L3 of 29.0mm, CH1 of 12mm, and CH2 of 17.0mm. This fitting ensures reliability and performance in fluid systems.

Product Specifications

Specifications Ch1

12 mm

Specifications Ch2

17.0 mm

Specifications L2

14.0 mm

Specifications L3

29.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm
