DIN 2353 Compression Straight Coupling - Carbon Steel Body with B4 Ring

Name: DIN 2353 Compression Straight Coupling - Carbon Steel Body with B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-1a91eb
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-1a91eb

DIN 2353 Compression Straight Coupling for reliable leak-free connections in hydraulic systems.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

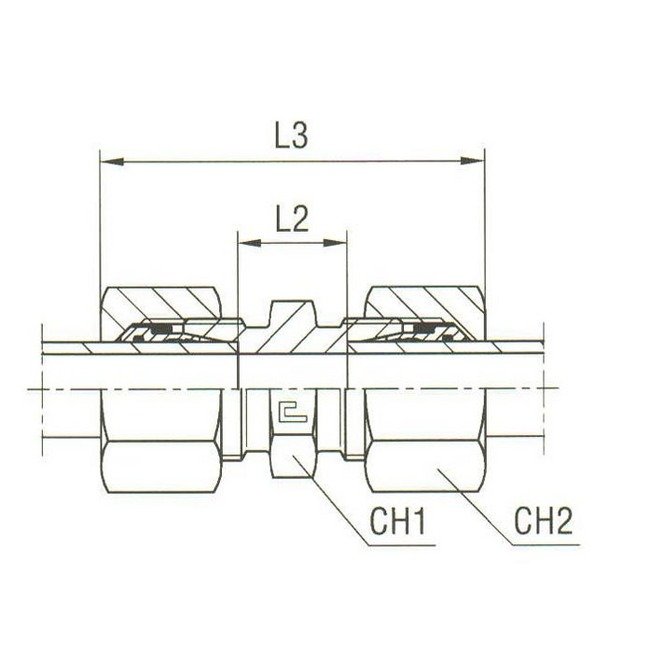

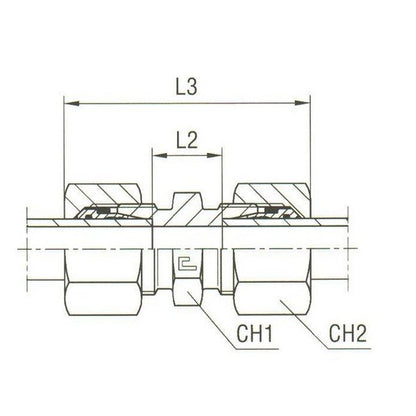

The DIN 2353 Compression Straight Coupling features a robust carbon steel body equipped with a durable B4 ring, ensuring reliable performance under light-duty pressure of up to 160 bar. With a tube diameter of 35.0mm and precision engineering meeting DIN 2353 standards, this coupling is designed for secure and leak-free connections in hydraulic systems. Benefit from its compact design with dimensions L2: 20.0mm, L3: 63mm, CH1: 46mm, CH2: 50mm, making it ideal for various applications requiring equal fittings.

Product Specifications

Specifications Ch1

46 mm

Specifications Ch2

50 mm

Specifications L2

20.0 mm

Specifications L3

63 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm

DIN 2353 Compression Straight Coupling - Carbon Steel Body with B4 Ring
