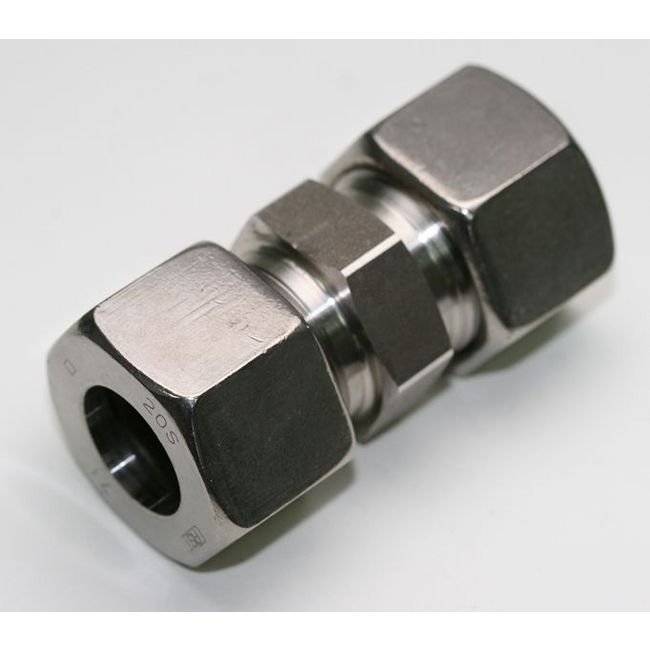

DIN 2353 Compression Straight Coupling - Carbon Steel Body with Equipped B3 Ring

Name: DIN 2353 Compression Straight Coupling - Carbon Steel Body with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-6ad643
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-6ad643

DIN 2353 Compression Straight Coupling - Carbon Steel Body, B3 Ring, Light Duty, 28mm Tube, 160 bar

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

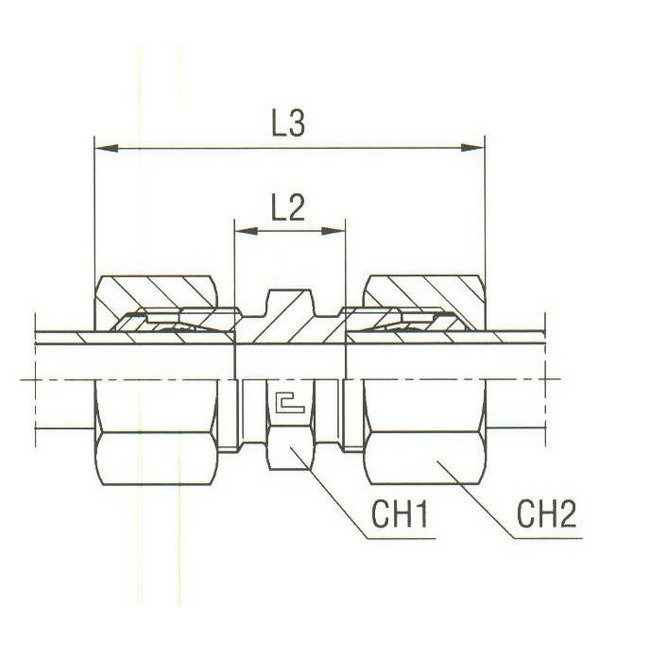

The DIN 2353 Compression Straight Coupling features a durable carbon steel body equipped with a B3 ring. Designed for light-duty applications, this coupling ensures a secure connection with a tube diameter of 28mm and a nominal operating pressure of 160 bar. With precise dimensions including L2: 21.0mm, L3: 54mm, CH1: 41mm, and CH2: 41mm, this fitting meets DIN 2353 standards, offering reliability and performance in fluid system setups.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications L2

21.0 mm

Specifications L3

54 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm
