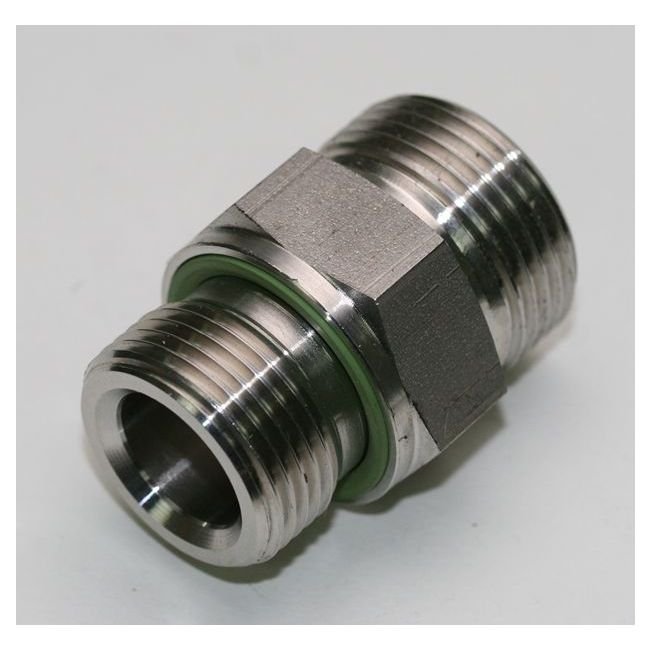

DIN 2353 Male Stud Coupling with Elastomer Seal - Carbon Steel

Name: DIN 2353 Male Stud Coupling with Elastomer Seal - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-7b30a8
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-7b30a8

DIN 2353 Male Stud Coupling with Elastomer Seal - Carbon Steel, ideal for hydraulic systems. Nominal pressure 315 bar, DIN 2353 standards compliant.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

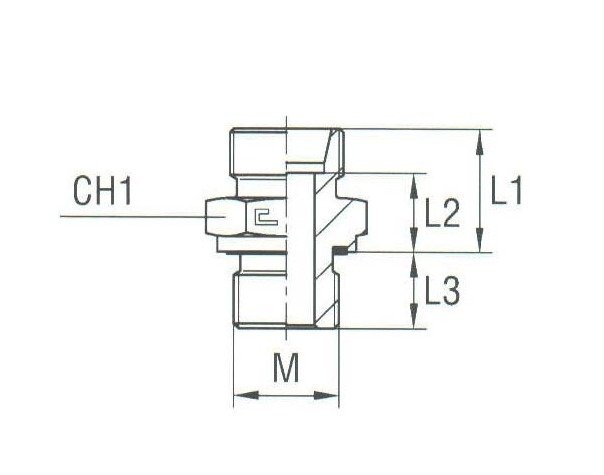

The DIN 2353 Male Stud Coupling with Elastomer Seal offers reliable light-duty performance for hydraulic systems. Constructed from carbon steel, this fitting is designed for a tube diameter of 10.0mm and has a thread size of 14x1.5. With a nominal operating pressure of 315 bar, it meets DIN 2353 standards, ensuring durability and precision. The coupling features precise dimensions (L1: 18.0mm, L2: 11.0mm, L3: 12.0mm, CH1: 19.0mm) for secure connections, making it ideal for various industrial applications.

Product Specifications

Specifications Ch1

19.0 mm

Specifications L1

18.0 mm

Specifications L2

11.0 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
