DIN 2353 Male Stud Coupling with O-Ring and Washer - Metric Parallel Thread

Name: DIN 2353 Male Stud Coupling with O-Ring and Washer - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-0576be
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-0576be

Durable DIN 2353 Male Stud Coupling with O-Ring and Washer for reliable hydraulic connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

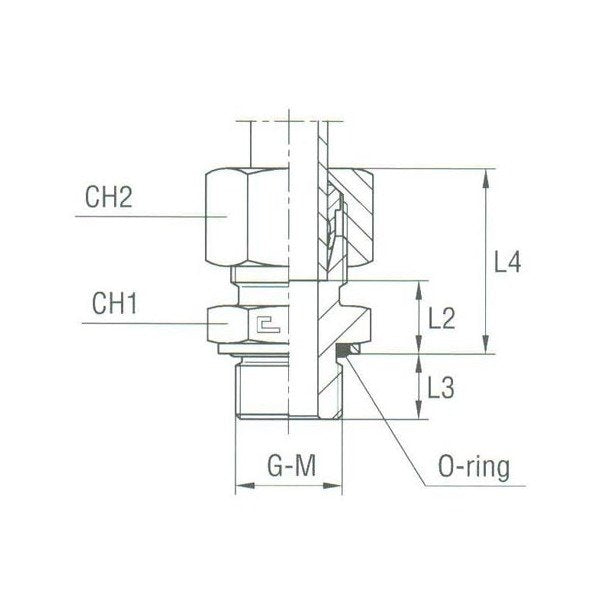

The DIN 2353 Male Stud Coupling with O-Ring and Washer features a durable carbon steel construction, designed for light-duty applications. With a tube diameter of 15.0mm and an M-thread size of 18x1.5, this coupling ensures a secure and leak-free connection. Rated for a nominal operating pressure of 315 bar, it meets DIN 2353 standards, guaranteeing reliability and quality performance. The compact design with precise dimensions like L2, L3, L4, CH1, and CH2 makes it ideal for various hydraulic systems.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

27 mm

Specifications L2

13.4 mm

Specifications L3

12.6 mm

Specifications L4

28.3 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel

DIN 2353 Male Stud Coupling with O-Ring and Washer - Metric Parallel Thread
