DIN 2353 Male Stud Coupling with O-Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
DIN 2353 Male Stud Coupling with O-Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
SKU:FIT-88cc50
DIN 2353 Male Stud Coupling with O-Ring - Heavy Duty Carbon Steel, 6.0mm Tube, 400 bar
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Male Stud Coupling with O-Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Male Stud Coupling with O-Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Male Stud Coupling with O-Ring is engineered for heavy-duty applications, constructed from high-quality carbon steel. With a tube diameter of 6.0mm and a nominal operating pressure of 400 bar, this coupling ensures reliable performance. Equipped with an elastomeric Viton seal, it meets DIN 2353 standards, providing a secure and leak-free connection for various industrial uses.

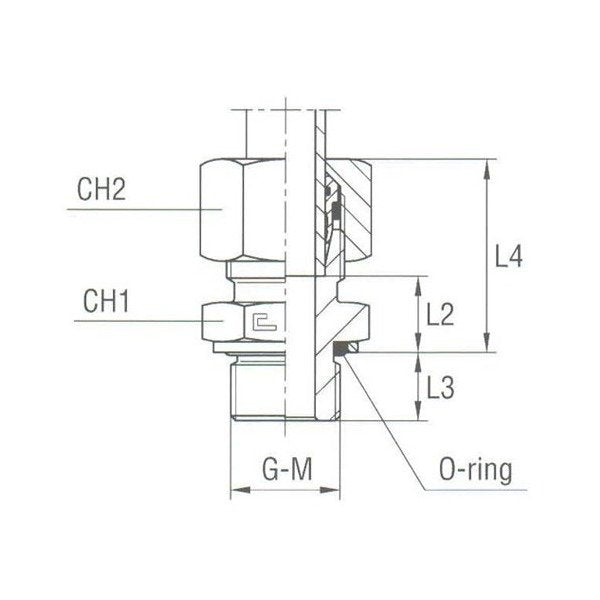

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
17.0 mm
Specifications L2
12.9 mm
Specifications L3
9.6 mm
Specifications L4
27.9 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Sealing
Elastometric Viton Seal
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
