DIN 2353 Male Stud Coupling with O-Ring, Metric Parallel - Equipped B3 Ring

Name: DIN 2353 Male Stud Coupling with O-Ring, Metric Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-92315e
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-92315e

Reliable DIN 2353 Male Stud Coupling with O-Ring for secure hydraulic connections in industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN 2353 Male Stud Coupling features a sturdy Carbon Steel construction, suitable for Extra Light Duty applications. With a Tube Diameter of 8.0 mm and a Nominal Operating Pressure of 100 bar, this coupling ensures secure connections with precise thread sizing (M10x1). Its adherence to DIN 2353 standards guarantees reliability. The integration of an O-Ring and Washer Thread Metric Parallel adds sealing effectiveness, making it ideal for hydraulic systems in industrial settings.

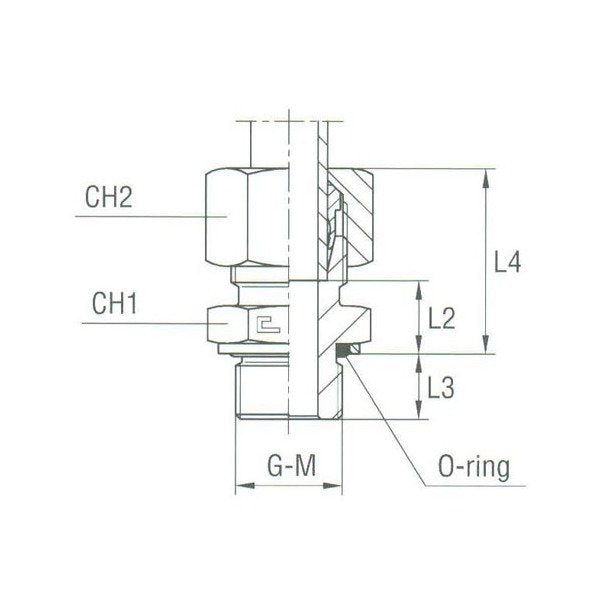

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

14 mm

Specifications L2

9.0 mm

Specifications L3

7.5 mm

Specifications L4

21 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
