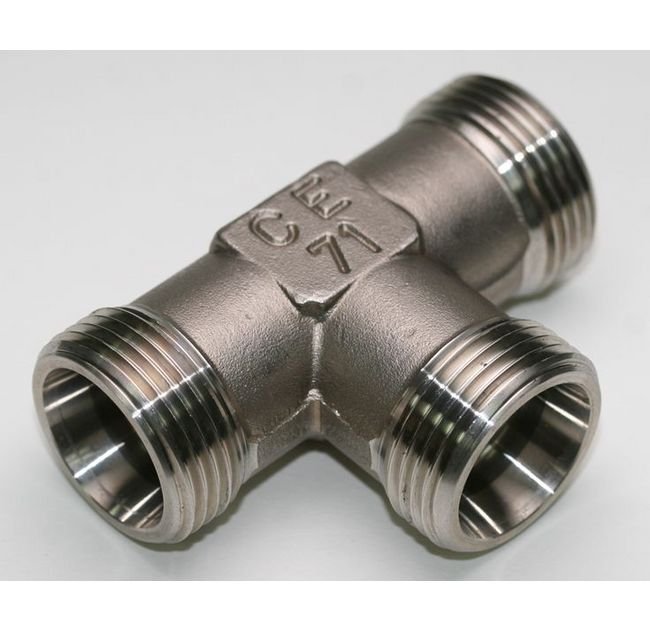

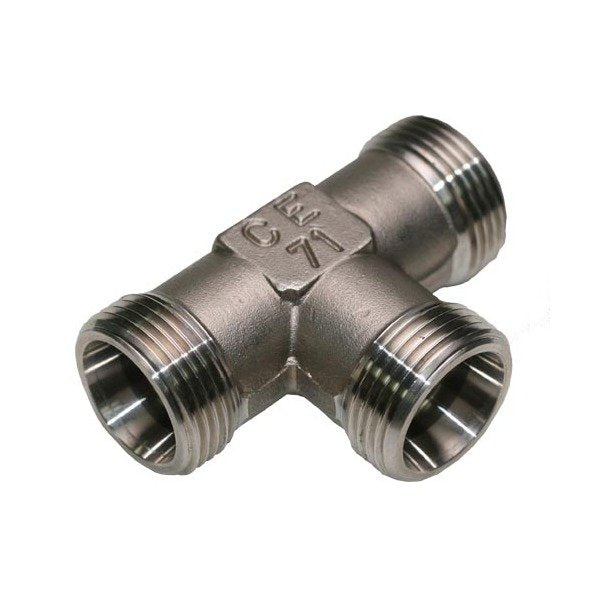

DIN 2353 Stainless Steel Equal Tee - Heavy Duty Compression Fitting

Name: DIN 2353 Stainless Steel Equal Tee - Heavy Duty Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-199b5d
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-199b5d

High-pressure Stainless Steel Equal Tee for DIN 2353 Compression Fittings

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

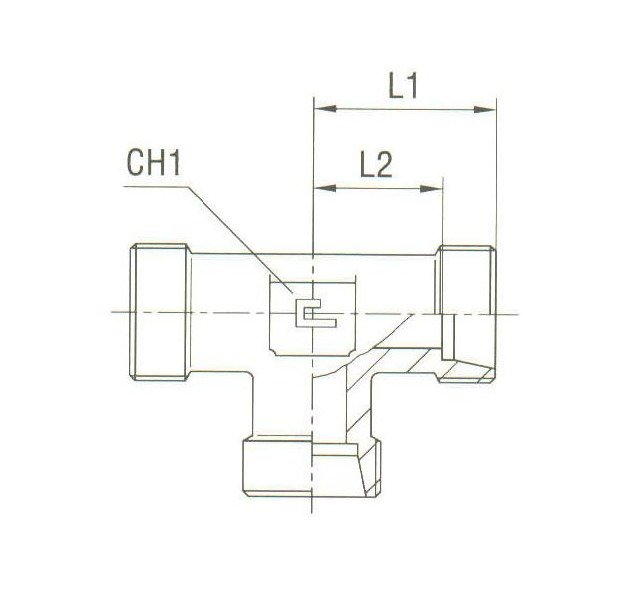

The DIN 2353 Stainless Steel Equal Tee - Body Only is engineered for heavy-duty applications, constructed from durable stainless steel. With a tube diameter of 12.0mm and a nominal operating pressure of 630 bar, this fitting ensures reliability under pressure. Measuring L1: 29.0mm, L2: 21.5mm, CH1: 17.0mm, it complies with DIN 2353 standards, offering superior quality and performance for various industrial setups.

Product Specifications

Specifications Ch1

17.0 mm

Specifications L1

29.0 mm

Specifications L2

21.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

DIN 2353 Stainless Steel Equal Tee - Heavy Duty Compression Fitting
