DIN 2353 Straight Coupling - Carbon Steel - 22mm Tube Diameter
DIN 2353 Straight Coupling - Carbon Steel - 22mm Tube Diameter
SKU:FIT-bd4a94
Get reliable performance with the DIN 2353 Straight Coupling in carbon steel for 22mm tube diameter.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Straight Coupling - Carbon Steel - 22mm Tube Diameter
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Straight Coupling - Carbon Steel - 22mm Tube Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

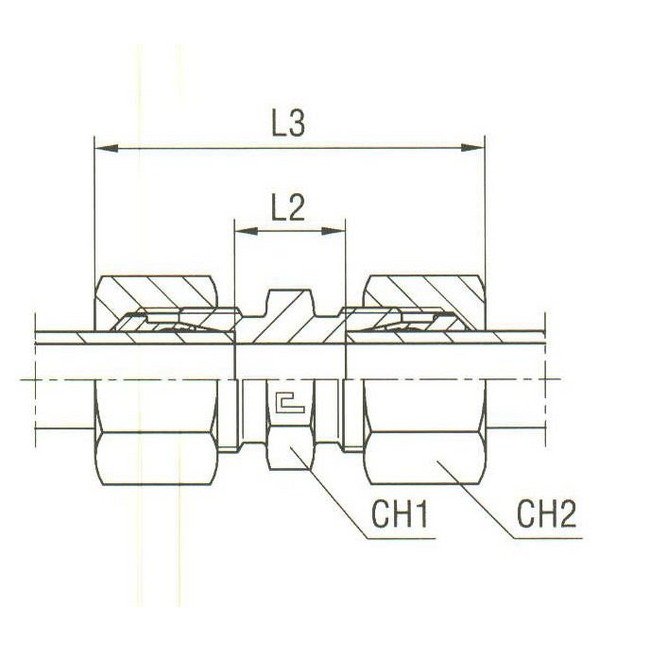

The DIN 2353 Straight Coupling - Body Only - Equipped B3 Ring is designed for light-duty applications with a maximum nominal operating pressure of 160 bar. Constructed from durable carbon steel, this coupling ensures reliable performance and longevity. Featuring a tube diameter of 22mm and meeting DIN 2353 standards, it offers precise fittings for various hydraulic systems. The dimensions including L2 of 20.0mm, L3 of 52mm, CH1 of 32mm, and CH2 of 36mm provide compatibility with standard configurations.
Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications L2
20.0 mm
Specifications L3
52 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
