DIN 2353 Straight Coupling - Carbon Steel Body with Equipped B4 Ring
DIN 2353 Straight Coupling - Carbon Steel Body with Equipped B4 Ring
SKU:FIT-43e2dd
DIN 2353 Straight Coupling - Carbon Steel Body, Equipped B4 Ring for Light-duty Applications
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Straight Coupling - Carbon Steel Body with Equipped B4 Ring
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Straight Coupling - Carbon Steel Body with Equipped B4 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Straight Coupling features a sturdy carbon steel body equipped with a B4 ring for secure connections. Designed for light-duty applications, it boasts a tube diameter of 8.0mm and a nominal operating pressure of 315 bar. With precise dimensions meeting DIN 2353 standards, this coupling ensures reliable performance in compression fittings.

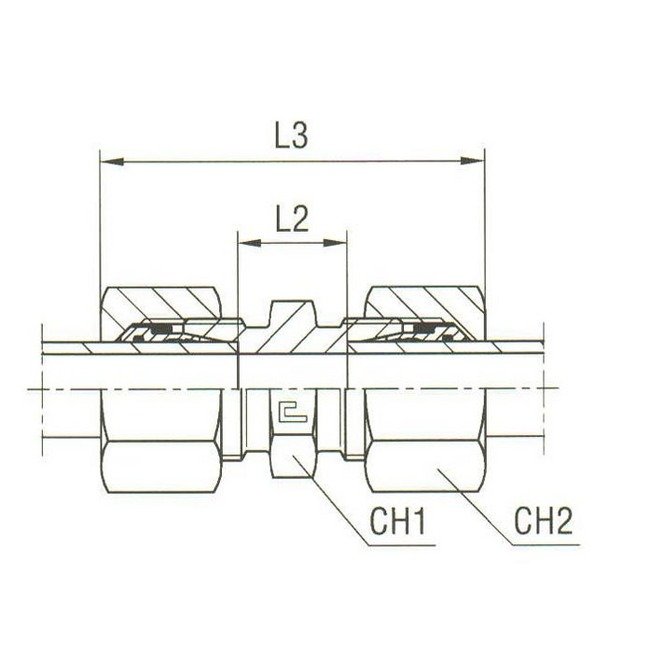

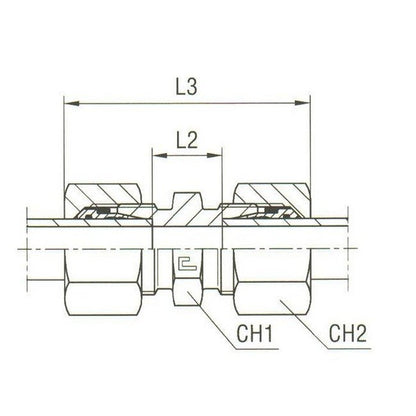

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
17.0 mm
Specifications L2
11.0 mm
Specifications L3
40 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
