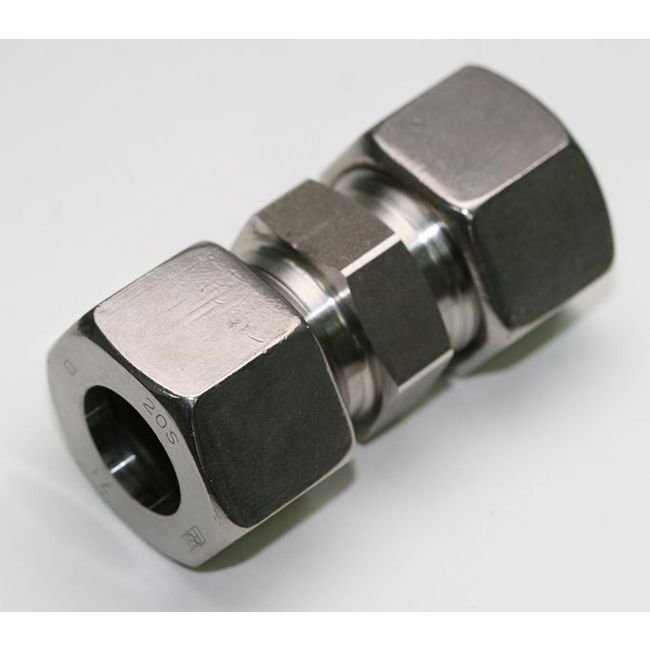

The DIN 2353 Straight Coupling features a robust carbon steel construction suited for light-duty applications. With a tube diameter of 15.0 mm and a nominal operating pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, its precise engineering guarantees secure connections in various industrial settings.

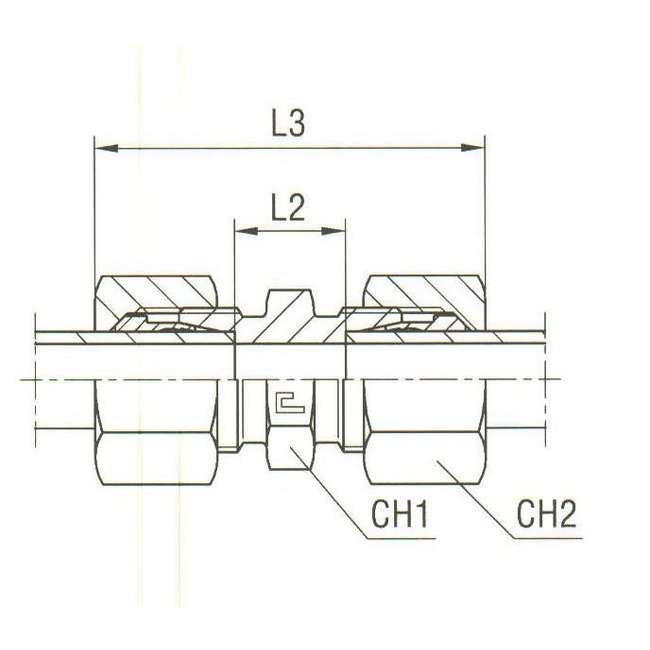

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
27 mm
Specifications L2
16.0 mm
Specifications L3
46 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
