DIN 2501 PN16 Bronze Globe Bolted Bonnet Valve

Name: DIN 2501 PN16 Bronze Globe Bolted Bonnet Valve
Brand: World Wide Metric, Inc.
SKU: VAL-9dec32
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-9dec32

Durable DIN 2501 PN16 Bronze Globe Valve for reliable performance in institutional settings.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN 2501 PN16 Bronze Globe Bolted Bonnet Valve is expertly crafted with a gunmetal body, brass stem, and bronze disc for durability and performance. With precise hydraulic inspections, flanges according to DIN2501-PN16 standards, and a handwheel actuator, this valve ensures reliable operation in diverse applications. Meeting institutional procurement standards, this valve is ideal for demanding environments where quality and compliance are paramount.

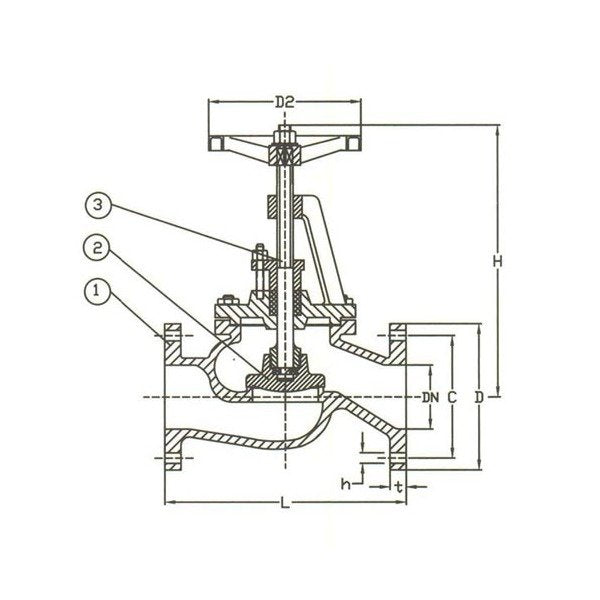

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

215 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

180 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

13.0 kg
