DIN 3852 Certified Carbon Steel In-Line Check Valves
DIN 3852 Certified Carbon Steel In-Line Check Valves
SKU:ACC-ad92f1
Enhance flow control with our DIN 3852 certified Carbon Steel Valves. Precision-engineered for reliability under pressure.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN 3852 Certified Carbon Steel In-Line Check Valves
$129.99
Quantity: 1
Claim Your Seller Account
DIN 3852 Certified Carbon Steel In-Line Check Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

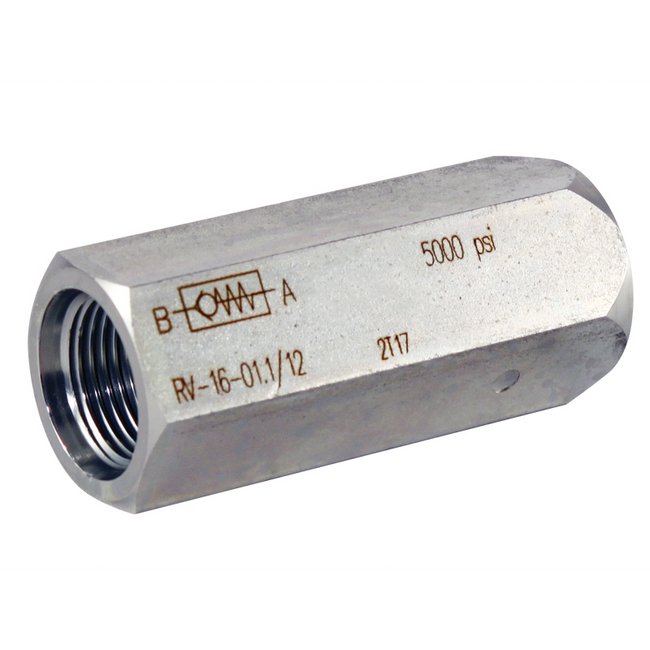

Experience unparalleled flow control with our DIN 3852 certified In-Line Check Valves. Crafted from durable carbon steel, these valves offer precision and reliability in fluid management. With a cracking pressure of 4.5 bar and a maximum operating pressure of 345 bar, they ensure performance under demanding conditions. Featuring a metal-to-metal seal design for the poppet and hardened steel construction, these valves are ideal for various applications. Please note, not recommended for high-cycle use. Trust in our valves for exceptional quality and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

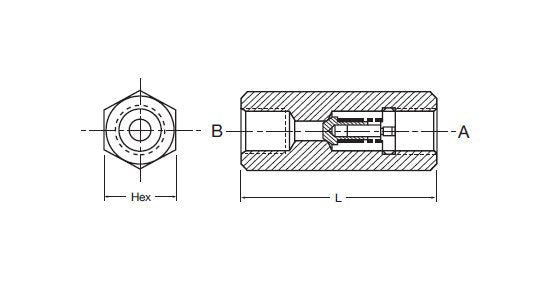

Dimensions Dimension L
2.87 in | 73 mm
Dimensions Hex Size
1 1/4 in | 30 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
4.5 bar | 65 psi
Specifications Division
ACCESSORIES
Specifications End Size
G1/2
Specifications End Type
BSPP
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-12-01.X/0- 65
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
12
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G1/2
Specifications Second End Type
BSPP
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
