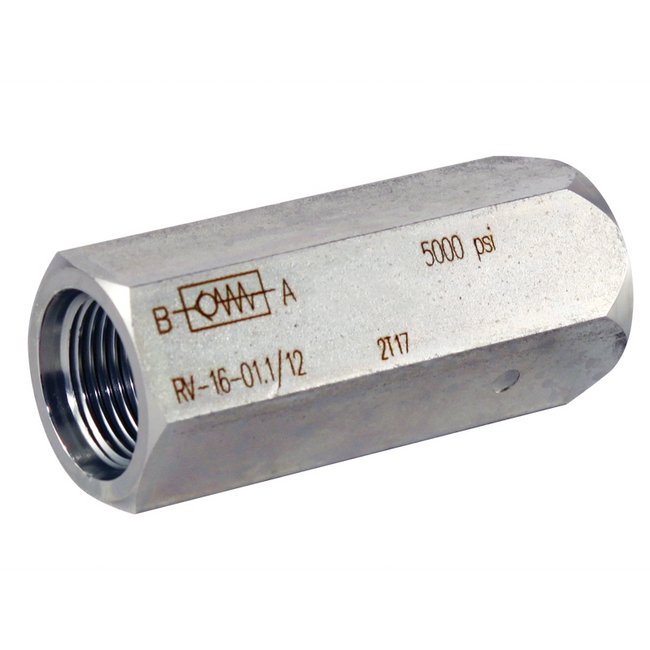

DIN 3852 Check Valves, Carbon Steel, BSPP, 25mm
DIN 3852 Check Valves, Carbon Steel, BSPP, 25mm
SKU:ACC-44a108
Reliable DIN 3852 Check Valves for industrial flow control needs, carbon steel construction, BSPP, 25mm, high-pressure rating up to 5000 psi.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN 3852 Check Valves, Carbon Steel, BSPP, 25mm
$129.99
Quantity: 1
Claim Your Seller Account
DIN 3852 Check Valves, Carbon Steel, BSPP, 25mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 3852 Check Valves are precision-engineered flow control valves designed for industrial applications. Constructed with carbon steel housing and BSPP port configuration, these in-line valves ensure reliable performance under high pressure (up to 5000 psi). With a metal-to-metal seal design and hardened steel poppet, they offer durability and leak-free operation. Not recommended for high-cycle applications, these valves ensure pressure control accuracy with a cracking pressure of 0.10 bar. Compliant with industry standards, these valves come in 9 sizes with manifold mounting options.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

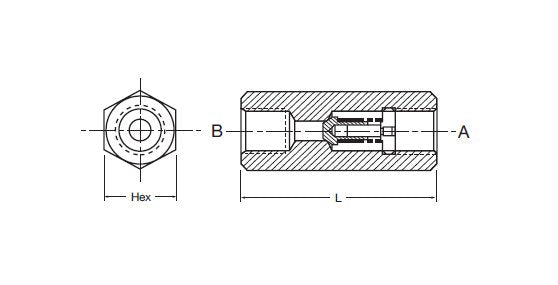

Dimensions Dimension L
5.63 in | 143 mm
Dimensions Hex Size
2 3/8 in | 60 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.10 bar | 12 psi
Specifications Division
ACCESSORIES
Specifications End Size
G1 1/4
Specifications End Type
BSPP
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-25-30.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
25
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G1 1/4
Specifications Second End Type
BSPP
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
