DIN 508 Metric T-Slot Nuts - 22mm Thread x 24mm Slot Width
DIN 508 Metric T-Slot Nuts - 22mm Thread x 24mm Slot Width
SKU:TSL-b97b80
High-quality DIN 508 Metric T-Slot Nuts with precise dimensions and customizable options for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 508 Metric T-Slot Nuts - 22mm Thread x 24mm Slot Width
$29.99
Quantity: 1
Claim Your Seller Account
DIN 508 Metric T-Slot Nuts - 22mm Thread x 24mm Slot Width
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

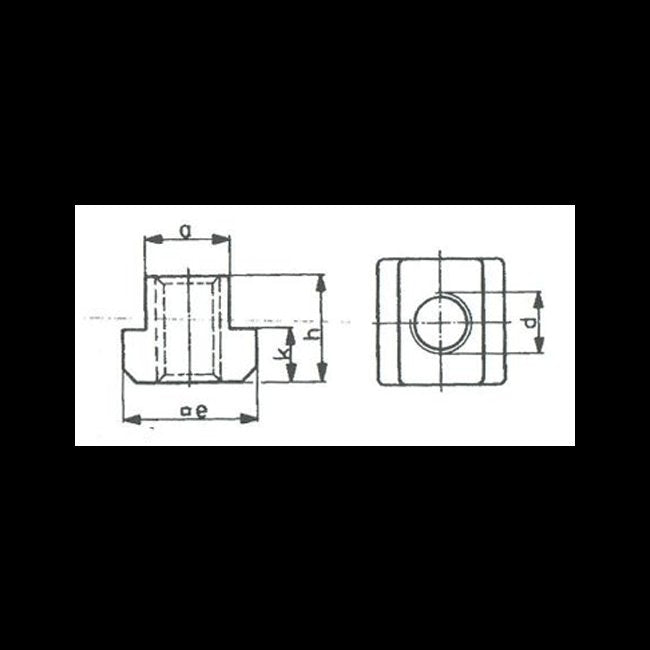

The DIN 508 Metric T-Slot Nuts feature a heat-treated construction with tensile strength class 10, meeting Old Standard 1928 and AMF works standard requirements. These nuts are meticulously crafted with exact dimensions: 22mm thread size, 24mm nominal slot width, 23.7mm exact slot width, 40mm bottom width, 32mm overall height, and 16mm height of the first step. Offering reliability and performance, these nuts can also be customized to meet specific needs upon request.
Product Specifications
Specifications Availability
To Be Advised
Specifications Bottom Widthe Mm
40
Specifications Exact Slot Widtha Mm
23.7
Specifications Height First Stepk Mm
16
Specifications Nominal Slot Width A Mm
24
Specifications Oa Height H Mm
32
Specifications Thread Sized Mm
22
