DIN 86037 Copper Nickel Inner Flanges - 2.5 in
DIN 86037 Copper Nickel Inner Flanges - 2.5 in
SKU:FLA-a4ede0
High-quality DIN 86037 Copper Nickel Inner Flanges for industrial use in 2.5 in size, 2.0 mm wall thickness. Precision-engineered for reliability.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
DIN 86037 Copper Nickel Inner Flanges - 2.5 in
$35.99
Quantity: 1
Claim Your Seller Account
DIN 86037 Copper Nickel Inner Flanges - 2.5 in
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

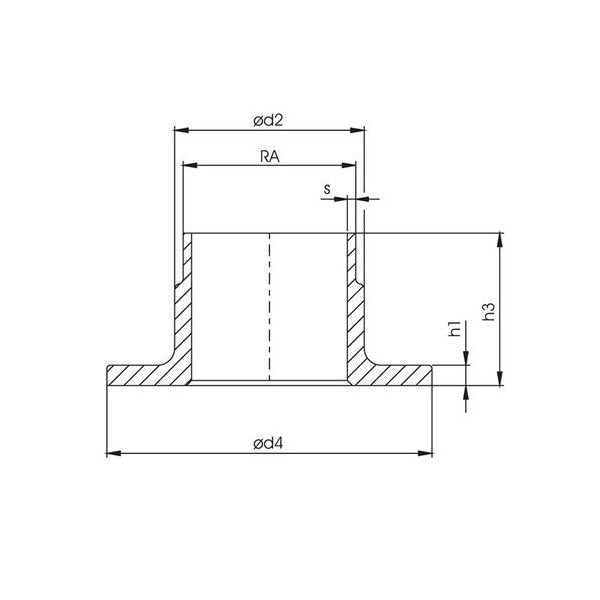

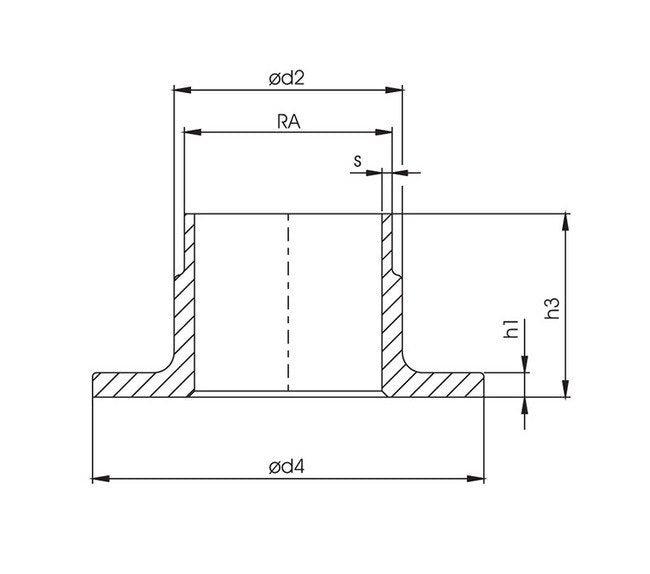

The DIN 86037 Copper Nickel Inner Flanges in 2.5 inches size are precision-engineered with a wall thickness of 2.0 mm, meeting the CuNi10Fe1.6Mn material standard. These flanges are designed for durability, with OD of 76.0 mm, d2 of 78 mm, and h3 of 45 mm. Their compliance with DIN 86037 ensures reliability and performance for industrial applications.
Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
78 mm
Specifications D4
122 mm
Specifications H1
6 mm
Specifications H3
45 mm
Specifications Nominal Size
2 1/2 in
Specifications Norm
DIN 86037
Specifications Ra Od
76.0 mm
Specifications S
2.0 mm
Specifications Weight
0.62 kg
