DIN 86037 Copper Nickel Inner Flanges 3 inch
DIN 86037 Copper Nickel Inner Flanges 3 inch
SKU:FLA-31517b
High-quality DIN 86037 Copper Nickel Inner Flanges for optimal performance in diverse applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DIN 86037 Copper Nickel Inner Flanges 3 inch
$59.99
Quantity: 1
Claim Your Seller Account
DIN 86037 Copper Nickel Inner Flanges 3 inch
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

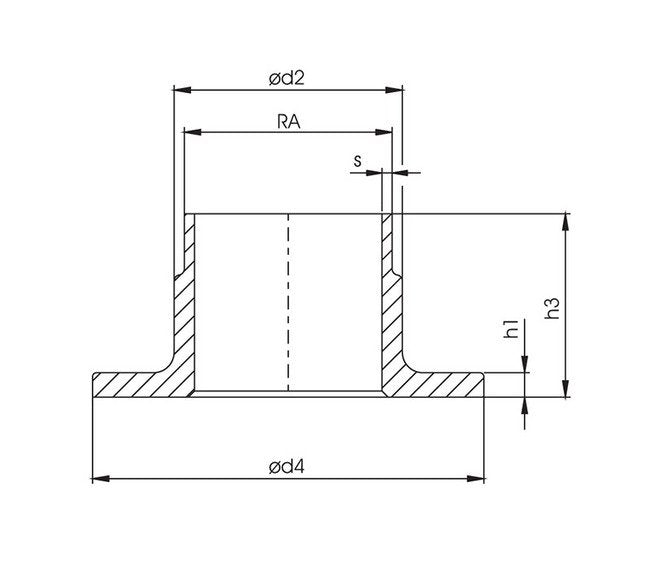

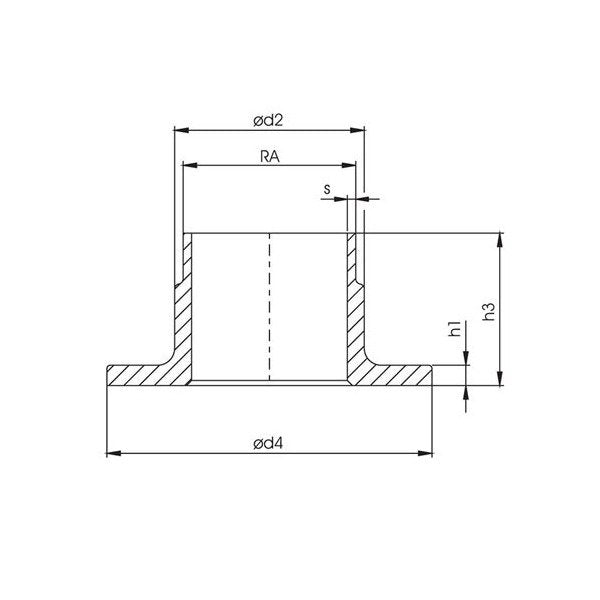

Experience superior quality with our DIN 86037 Copper Nickel Inner Flanges. These flanges are precisely engineered with a Nominal Size of 3 inches, RA - OD of 89.0 mm, and Body Material CuNi10Fe1.6Mn, meeting stringent industry standards. With dimensions like s: 2.0 mm, d2: 91 mm, d4: 138 mm, h3: 50 mm, and h1: 7 mm, these flanges ensure optimal performance and durability. Weighing just 0.86 kg, these Inner Flanges are a reliable choice for various applications.
Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
91 mm
Specifications D4
138 mm
Specifications H1
7 mm
Specifications H3
50 mm
Specifications Nominal Size
3 in
Specifications Norm
DIN 86037
Specifications Ra Od
89.0 mm
Specifications S
2.0 mm
Specifications Weight
0.86 kg
