DIN Angle Valve - Cast Steel PN 16 Regular Valve
DIN Angle Valve - Cast Steel PN 16 Regular Valve
SKU:VAL-16c36b
High-performance DIN Angle Valve for industrial applications, built to last with Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat. DIN standards compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Angle Valve - Cast Steel PN 16 Regular Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve - Cast Steel PN 16 Regular Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Angle Valve - Cast Steel PN 16 Regular Valve is a robust solution designed for industrial applications. Constructed with high-quality materials including Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat, this valve ensures durability and reliability in demanding environments. Meeting DIN standards, with flanges according to DIN2501-PN16, this valve offers optimal performance with a Handwheel actuator for easy operation.

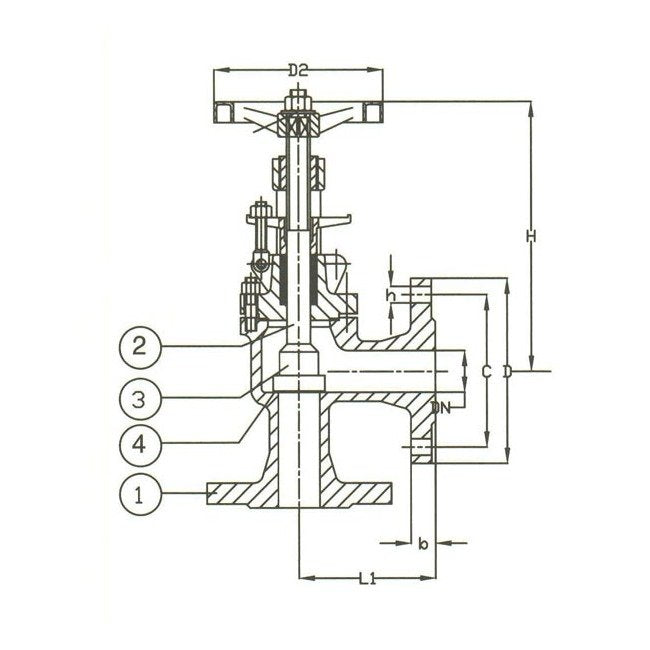

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
225 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
125 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
050
Specifications Stem Material
Brass
Specifications T
18 mm
Specifications Weight
11.5 kg
