DIN Angle Valve Cast Steel PN16 Regular Valve
DIN Angle Valve Cast Steel PN16 Regular Valve
SKU:VAL-7aec41
Premium DIN Angle Valve crafted for durability and precision, suitable for hydraulic systems. Compliant with DIN standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN Angle Valve Cast Steel PN16 Regular Valve
$189.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve Cast Steel PN16 Regular Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Angle Valve Cast Steel PN16 Regular Valve is meticulously engineered for durability and precision. Crafted with a cast steel body, brass stem, stainless steel disc, and either brass or stainless steel seat, this valve ensures reliable performance in hydraulic systems. Compliant with DIN standards and featuring a handwheel actuator plus flanged connection, it offers seamless integration and easy operation. Ideal for industrial applications requiring high-quality valves that meet stringent standards.

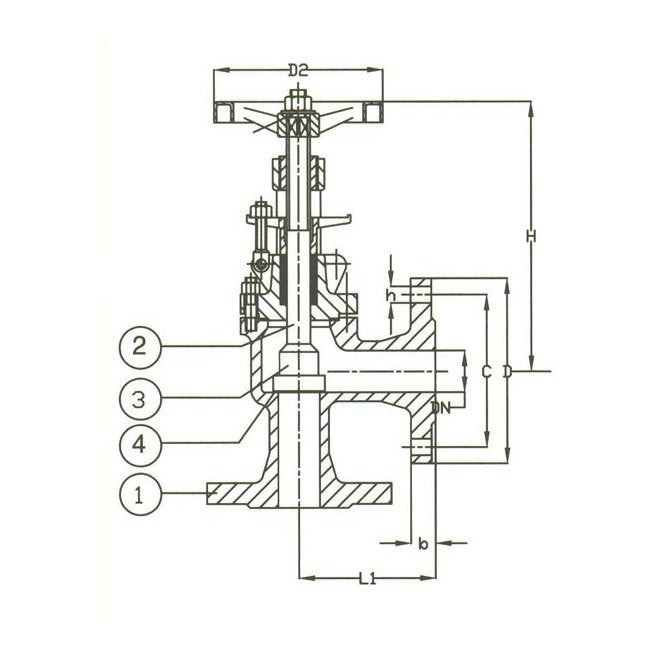

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
032
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
6.60 kg
