DIN Angle Valve - Ductile Iron PN16 Regular Angle Valve

Name: DIN Angle Valve - Ductile Iron PN16 Regular Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-ba686b
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-ba686b

Durable DIN Angle Valve for precise hydraulic control in industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Angle Valve - Ductile Iron PN16 Regular Angle Valve is a robust solution crafted with a Ductile Iron body, Brass stem, and Stainless Steel disc ensuring durability and reliability. Meeting DIN standards, it offers precise hydraulic control with a Brass seat or Stainless Steel option. Designed with optimal dimensions and materials, this valve guarantees efficient performance in industrial settings.

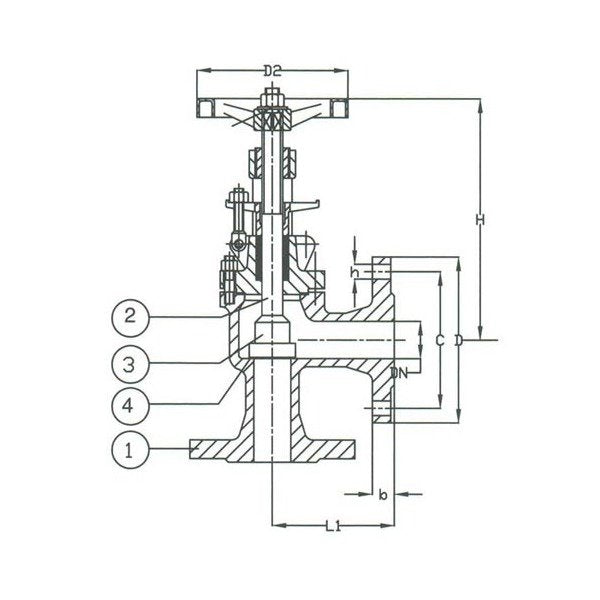

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

130 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755416

Specifications L1

90 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

3.9 kg

DIN Angle Valve - Ductile Iron PN16 Regular Angle Valve
