DIN Angle Valve PN 16 Bronze Bolted Bonnet Regular Valve

Name: DIN Angle Valve PN 16 Bronze Bolted Bonnet Regular Valve
Brand: World Wide Metric, Inc.
SKU: VAL-89e3ab
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-89e3ab

Premium DIN Angle Valve for industrial applications, featuring durable bronze construction, stainless steel stem, and DIN2501-PN16 flanged connection.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Angle Valve PN 16 Bronze Bolted Bonnet Regular Valve is a high-quality valve designed for industrial applications. Constructed with durable bronze materials for the body, seat, disc, and a stainless steel stem, this valve ensures longevity and reliable performance. It features a handwheel actuator for easy operation and a flanged connection according to DIN2501-PN16 standards. With precise hydraulic inspections and compliance with DIN standards, this valve offers exceptional functionality and durability.

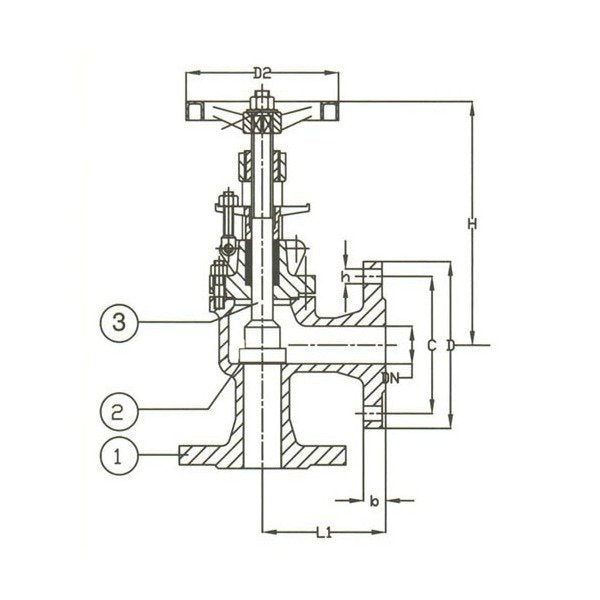

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

200 mm

Specifications Disc Material

Bronze

Specifications H

280 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

145 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

17.5 kg
