DIN Angle Valve - PN 16 Bronze Bonnet Regular Valve

Name: DIN Angle Valve - PN 16 Bronze Bonnet Regular Valve
Brand: World Wide Metric, Inc.
SKU: VAL-14f8a9
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-14f8a9

High-performance PN 16 Bronze Valve for industrial applications, compliant with DIN standards.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet Regular Valve is a top-quality valve designed for industrial applications. Constructed with durable Bronze body, seat, disc, and Brass stem, it ensures reliability and longevity. With precise hydraulic inspections conforming to DIN standards, this valve guarantees optimal performance. The handwheel actuator provides easy operation, while the flanged drilled connection simplifies installation. Meeting stringent industry standards, this valve is ideal for government and institutional procurement needs.

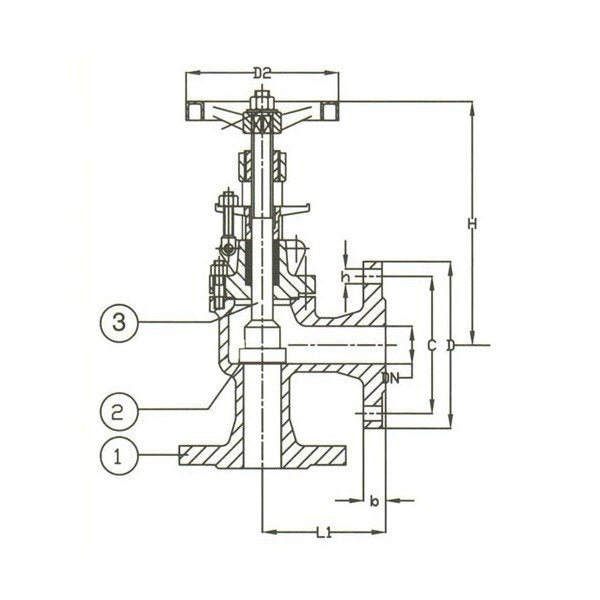

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

375 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

175 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

32.0 kg
