DIN Angle Valve PN 16 Cast Iron SDNR Valve
DIN Angle Valve PN 16 Cast Iron SDNR Valve
SKU:VAL-4b88fd
High-quality DIN Angle Valve with Cast Iron body, Stainless Steel components, and DIN2501-PN16 Flanges. Optimal for precise hydraulic control.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
DIN Angle Valve PN 16 Cast Iron SDNR Valve
$139.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 16 Cast Iron SDNR Valve
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

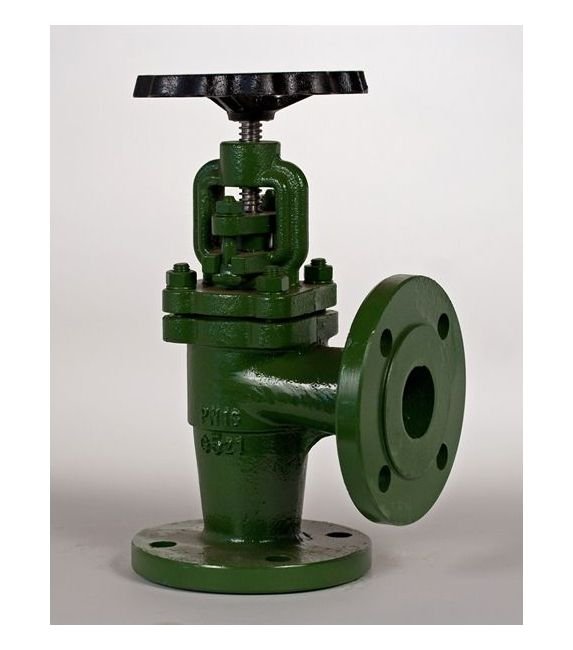

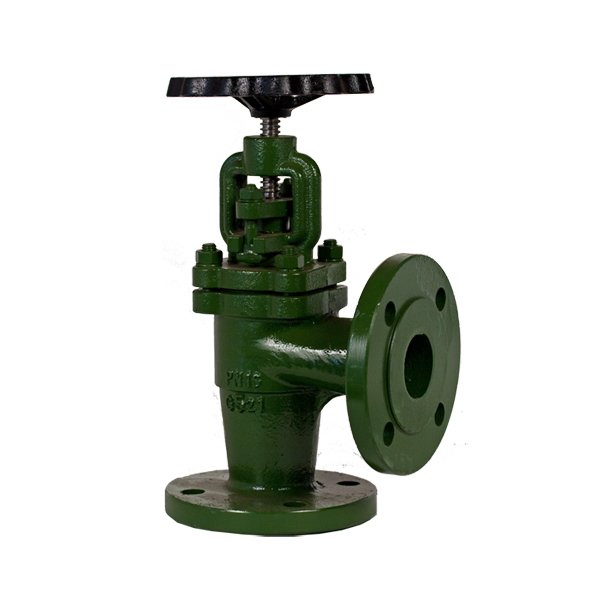

The DIN Angle Valve PN 16 Cast Iron SDNR Valve is expertly crafted with a Cast Iron body, Stainless Steel stem, disc, and seat. Compliant with ISO5752 Series 8 standards, this valve features Flanges according to DIN2501-PN16, ensuring reliable performance. With a Size of 032 and durable construction materials, this valve offers exceptional longevity and hydraulic efficiency suitable for various applications.
Ready to Grow Without Cash Flow Constraints?

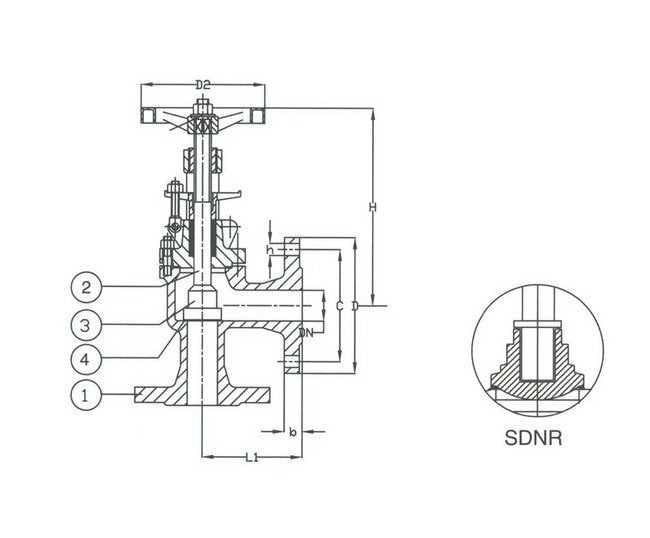

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
6.60 kg
