DIN Angle Valve PN 16 Cast Iron Valve
DIN Angle Valve PN 16 Cast Iron Valve
SKU:VAL-b68189
Durable DIN Angle Valve for industrial use, featuring cast iron body, stainless steel components, and DIN2501-PN16 Flanges. Compliant with ISO standards. Ideal for institutional procurement.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DIN Angle Valve PN 16 Cast Iron Valve
$149.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 16 Cast Iron Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

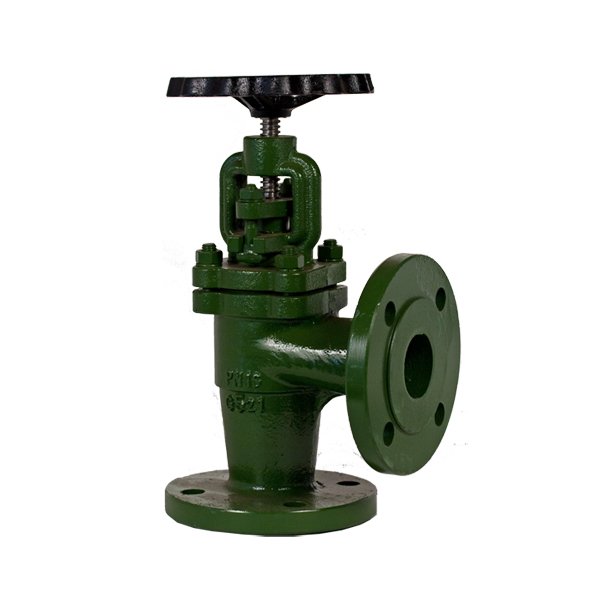

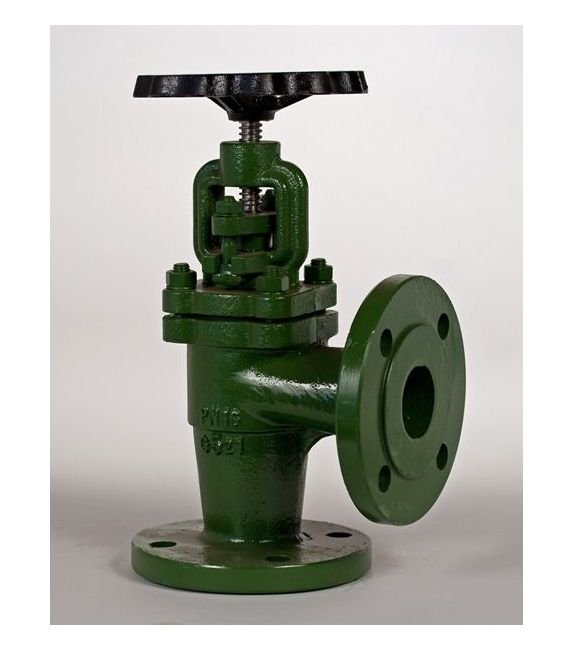

The DIN Angle Valve PN 16 Cast Iron Valve is designed for robust performance in industrial applications. Constructed with a cast iron body, stainless steel stem, disc, and seat, this valve ensures durability and corrosion resistance. With Flanges according to DIN2501-PN16 standards, it offers reliable sealing and efficient flow control. The Handwheel Actuator provides manual operation, making it easy to adjust flow rates. Compliant with ISO5752 Series 8 standards, this valve is ideal for institutional and government procurement needs.

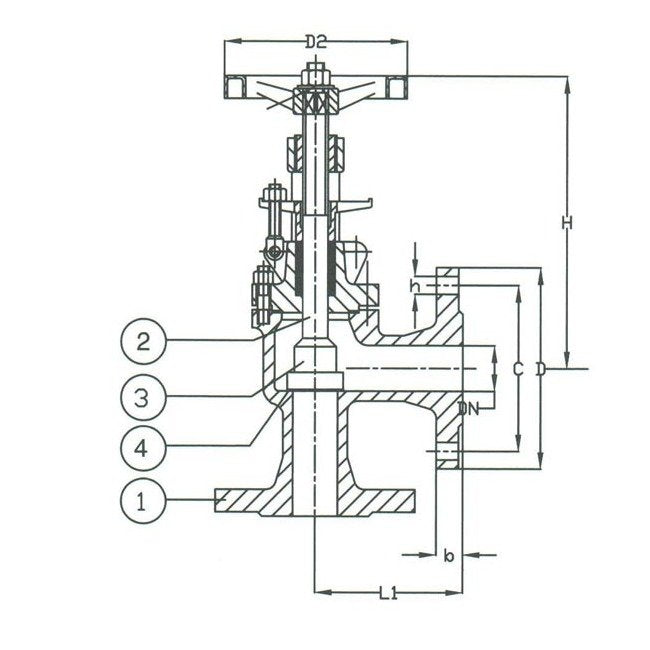

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
225 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
125 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stainless Steel
Specifications T
18 mm
Specifications Weight
11.5 kg
