DIN Angle Valve PN 16 Cast Steel
DIN Angle Valve PN 16 Cast Steel
SKU:VAL-3aff38
Durable DIN Angle Valve PN 16 Cast Steel for industrial applications, featuring cast steel body, stainless steel seat and disc, and handwheel actuators.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
DIN Angle Valve PN 16 Cast Steel
$259.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 16 Cast Steel
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

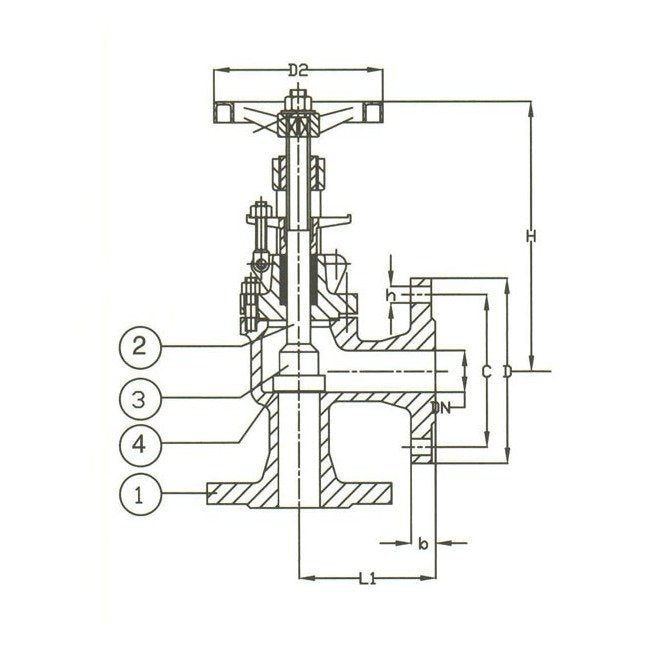

The DIN Angle Valve PN 16 Cast Steel is a durable and reliable valve designed for industrial applications. Constructed with a cast steel body, stainless steel seat and disc, and a brass or stainless steel stem, this valve ensures high performance and longevity. It features Flanges according to DIN2501-PN16 standards, making it compatible with a wide range of systems. With a size of 150 and hydraulic inspection ratings of 25 for the body and 16 for the seat, this valve is ideal for various hydraulic systems. The inclusion of handwheel actuators allows for easy manual operation. Compliant with DIN standards and suitable for institutional procurement, this valve meets the quality and performance requirements for industrial settings.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
240 mm
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications D2
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
385 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753476 | 755319
Specifications L1
225 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
22 mm
Specifications Weight
67 kg
