DIN Angle Valve PN 16 Cast Steel Regular Valve
DIN Angle Valve PN 16 Cast Steel Regular Valve
SKU:VAL-eb39ab
Precision-engineered DIN Angle Valve for industrial applications. Cast steel body, brass seat, stainless steel disc. Compliant with DIN standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN Angle Valve PN 16 Cast Steel Regular Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 16 Cast Steel Regular Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Angle Valve PN 16 Cast Steel Regular Valve is designed with precision and durability in mind. Its cast steel body and stainless steel disc ensure robustness, while the brass seat provides a reliable seal. This valve is compliant with DIN standards, offering high performance and longevity in industrial applications. The handwheel actuator and flanged connection make it easy to operate and install, meeting the stringent requirements of institutional buyers.

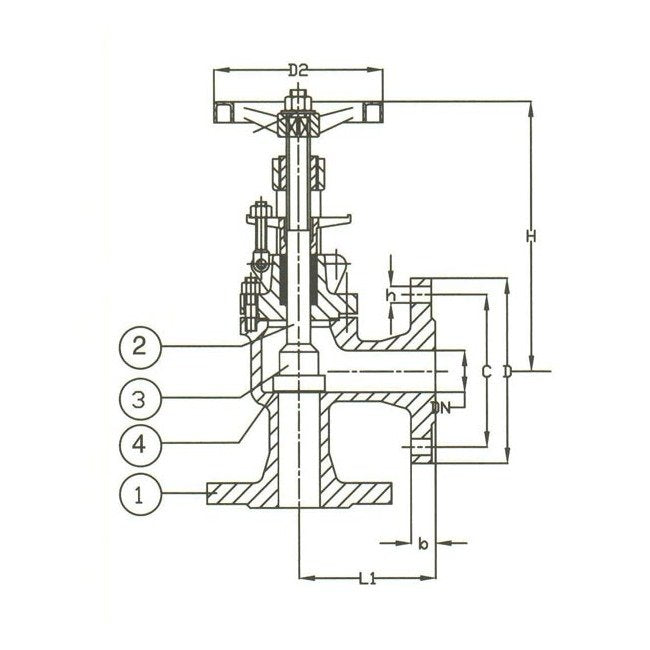

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
160 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
025
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
5.5 kg
