DIN Angle Valve PN 16 Ductile Iron with Stainless Steel Components
DIN Angle Valve PN 16 Ductile Iron with Stainless Steel Components
SKU:VAL-aa041a
Industrial-grade DIN Angle Valve PN 16 with Ductile Iron Body & Stainless Steel Components
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DIN Angle Valve PN 16 Ductile Iron with Stainless Steel Components
$159.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 16 Ductile Iron with Stainless Steel Components
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Angle Valve PN 16 is a robust and durable valve designed for industrial applications. Constructed with ductile iron body, stainless steel disc, seat, and stem materials, it ensures reliability and longevity in operation. With dimensions meeting DIN2501-PN16 standards, this valve offers precise hydraulic control with a handwheel actuator for easy operation. Suitable for a wide range of hydraulic systems, this valve provides leak-proof performance and complies with ISO5752 Series 8 standards.

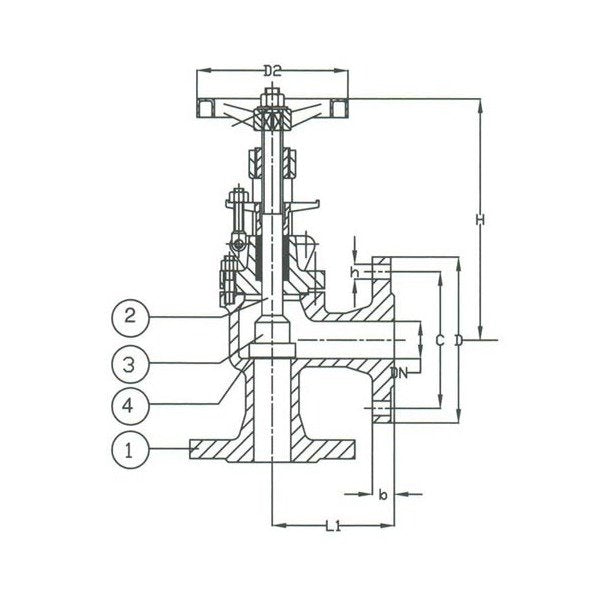

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
160 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
5.5 kg
