DIN Angle Valve PN 40 Cast Steel Regular Angle Valve
DIN Angle Valve PN 40 Cast Steel Regular Angle Valve
SKU:VAL-3e1bef
Explore our DIN Angle Valve for precise hydraulic control with Cast Steel body, Stainless Steel components & Handwheel actuator.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DIN Angle Valve PN 40 Cast Steel Regular Angle Valve
$799.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN 40 Cast Steel Regular Angle Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Angle Valve PN 40 Cast Steel Regular Angle Valve is constructed with a Cast Steel body, Stainless Steel stem, disc, and seat, meeting rigorous industry standards like ISO5752 Series 8 and DIN2501-PN40. This valve provides exceptional durability and performance in hydraulic systems, with precise measurements (Size: 250, Weight: 188 kg) ensuring reliability and efficiency. Featuring a Handwheel actuator for manual operation and Flanged Drilled connections, this valve exemplifies quality and compliance for institutional applications.
Ready to Grow Without Cash Flow Constraints?

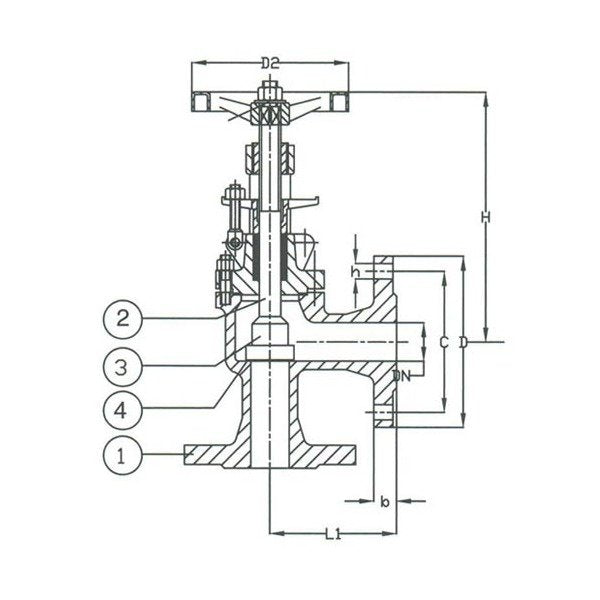

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
385 mm
Specifications Connection
Flanged Drilled
Specifications D
450 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
580 mm
Specifications Hydraulic Inspection Body
37.5
Specifications Hydraulic Inspection Seat
25
Specifications Impaissa Code
753494 | 755354
Specifications L1
325 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
250
Specifications Stem Material
Stainless Steel
Specifications T
38 mm
Specifications Weight
188 kg
