DIN Angle Valve PN 40 Cast Steel SDNR Valve

Name: DIN Angle Valve PN 40 Cast Steel SDNR Valve
Brand: World Wide Metric, Inc.
SKU: VAL-62ca20
Price: 599.99 USD
Availability: OutOfStock

SKU:VAL-62ca20

DIN Angle Valve for industrial applications, PN 40 Cast Steel body, stainless steel components, DIN2501-PN40 flanges, reliable and efficient.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Angle Valve PN 40 Cast Steel SDNR Valve is engineered for robust performance in industrial applications. Constructed with a cast steel body (GSC-25N2), stainless steel components for enhanced durability, and designed to precise ISO5752 Series 8 standards. This valve features flanges according to DIN2501-PN40, ensuring seamless integration and reliable sealing. With a size of 250 and weighing 188 kg, it offers exceptional hydraulic performance, supported by a stainless steel seat and disc, and AISI 4103 stainless steel stem. The handwheel actuator facilitates easy operation, making this valve a dependable choice for critical processes.

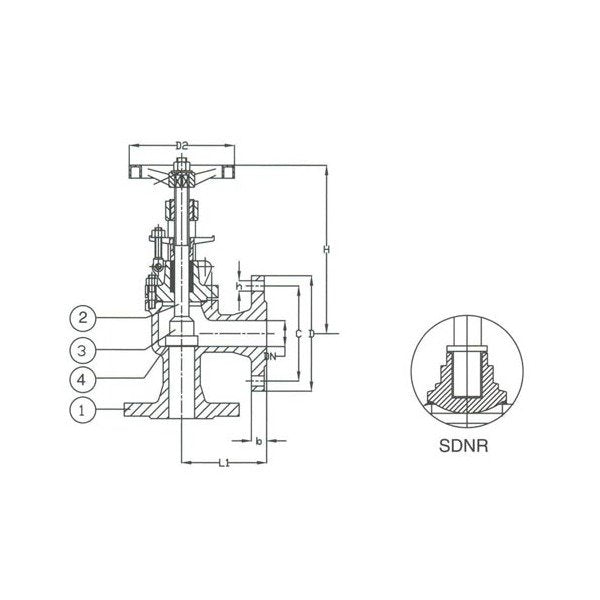

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

385 mm

Specifications Connection

Flanged Drilled

Specifications D

450 mm

Specifications D2

500 mm

Specifications Disc Material

Stainless Steel

Specifications H

580 mm

Specifications Hydraulic Inspection Body

37.5

Specifications Hydraulic Inspection Seat

Specifications L1

325 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

250

Specifications Stem Material

Stainless Steel

Specifications T

38 mm

Specifications Weight

188 kg
