DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

SKU:VAL-985976

Reliable DIN Angle Valve for industrial applications, PN 40 Cast Steel, Size 300, compliant with ISO5752 & DIN2501 standards.

Regular price $799.99
Regular price Sale price $799.99
Sale

Initiate Order

DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

$799.99

Quantity: 1

Claim Your Seller Account

DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

DIN Angle Valve PN 40 Cast Steel SDNR Valve - Size 300

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DIN Angle Valve PN 40 Cast Steel SDNR Valve combines durability and precision engineering. Constructed with a cast steel body, stainless steel stem, disc, and seat, it ensures reliable performance in demanding industrial environments. Featuring a handwheel actuator and flanged connection, this valve offers easy operation and secure installation. With compliance to ISO5752 and DIN2501-PN40 standards, this valve provides a dependable solution for institutional applications requiring robust fluid control.

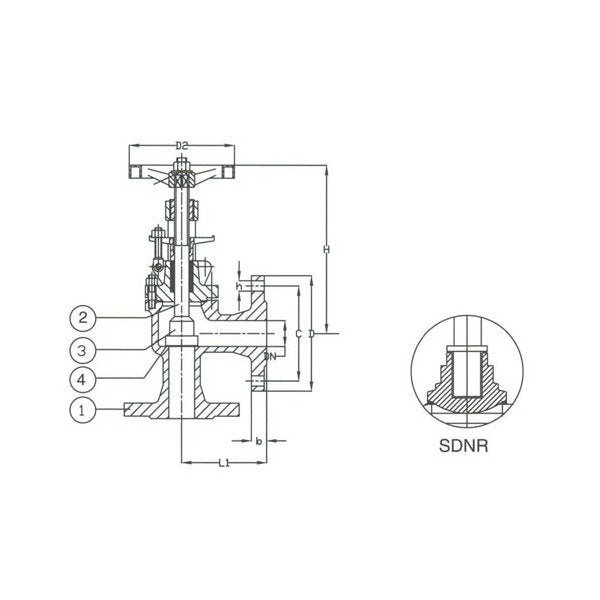

Product Specifications

Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
450 mm
Specifications Connection
Flanged Drilled
Specifications D
515 mm
Specifications D2
575 mm
Specifications Disc Material
Stainless Steel
Specifications H
630 mm
Specifications Hydraulic Inspection Body
37.5
Specifications Hydraulic Inspection Seat
25
Specifications L1
375 mm
Specifications Number Of Holes
16
Specifications Seat Material
Stainless Steel
Specifications Size
300
Specifications Stem Material
Stainless Steel
Specifications T
42 mm
Specifications Weight
328 kg
