DIN Angle Valve PN16 Cast Iron SDNR Valve
DIN Angle Valve PN16 Cast Iron SDNR Valve
SKU:VAL-68b1a6
Durable DIN Angle Valve PN16 Cast Iron SDNR Valve with stainless steel components. Easy to operate and install, compliant with ISO5752 & DIN2501-PN16.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN Angle Valve PN16 Cast Iron SDNR Valve
$189.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN16 Cast Iron SDNR Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

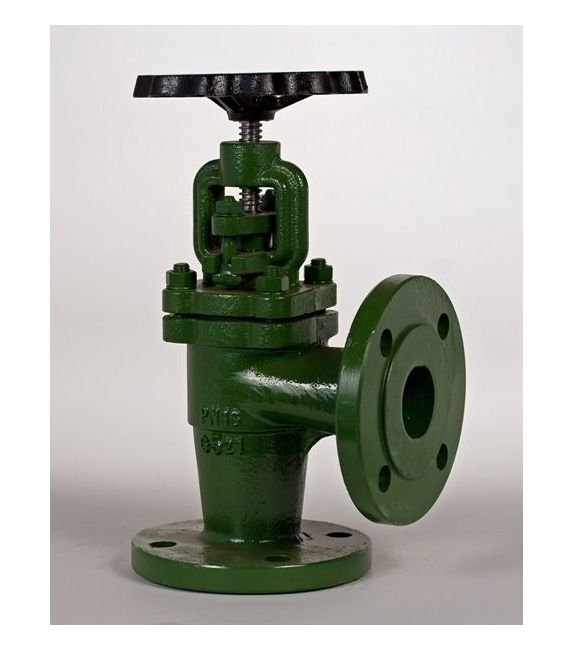

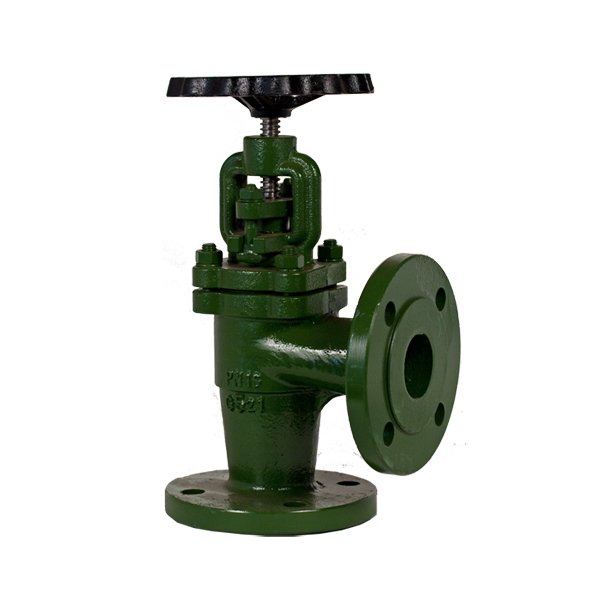

The DIN Angle Valve PN16 Cast Iron SDNR Valve is a durable and reliable solution designed for industrial applications. Constructed with a cast iron body and stainless steel components, including stem, disc, and seat, this valve ensures excellent performance and longevity. With a handwheel actuator and flanged connection, it offers easy operation and secure installation. Compliant with ISO5752 and DIN2501-PN16 standards, this valve guarantees precision and efficiency in fluid control systems.

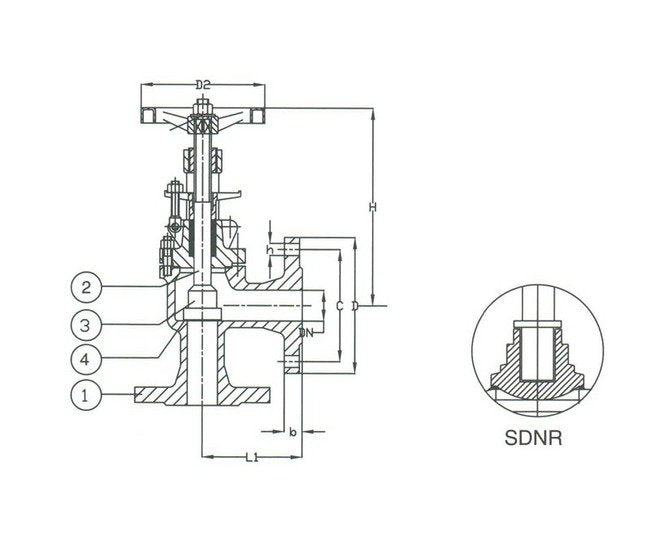

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
225 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
125 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stainless Steel
Specifications T
18 mm
Specifications Weight
11.5 kg
