DIN Angle Valve PN16 Cast Iron with Stainless Steel Components
DIN Angle Valve PN16 Cast Iron with Stainless Steel Components
SKU:VAL-e4009c
Reliable PN16 Cast Iron Angle Valve with Stainless Steel Components for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The PN 16 Cast Iron Angle Regular Valve is a robust and durable valve designed for industrial applications. Constructed with a Cast Iron body and Stainless Steel components including the stem, disc, and seat, this valve ensures long-term reliability and corrosion resistance. With flanges conforming to DIN2501-PN16 standards, this valve offers a secure and leak-free connection. The handwheel actuator allows for manual operation, providing ease of use for operators in various settings.

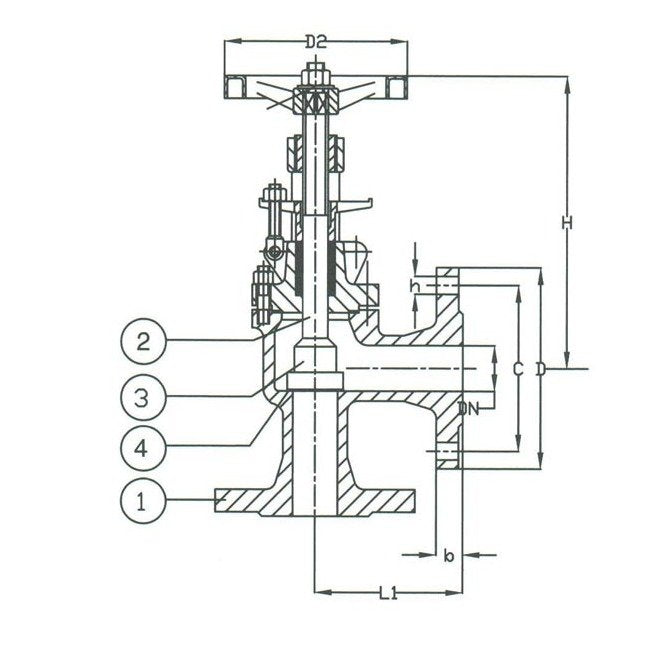

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
355 mm
Specifications Connection
Flanged Drilled
Specifications D
405 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
580 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
325 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
250
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
184 kg
