DIN Angle Valve - PN16 Cast Steel

Name: DIN Angle Valve - PN16 Cast Steel
Brand: World Wide Metric, Inc.
SKU: VAL-ab8ddc
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-ab8ddc

Reliable PN 16 Cast Steel Angle Regular Valve with Brass seat and Stainless Steel disc, ideal for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Angle Regular Valve is a robust and reliable valve suitable for industrial applications. Constructed with a Cast Steel body, Brass stem, and Stainless Steel disc, this valve ensures durability and excellent performance. It features a Brass or Stainless Steel seat, Handwheel actuators, and Flanged Drilled connections for easy installation. With compliance to DIN 17672 standards, this valve offers precise hydraulic control and longevity in operation, making it an ideal choice for institutional and government buyers.

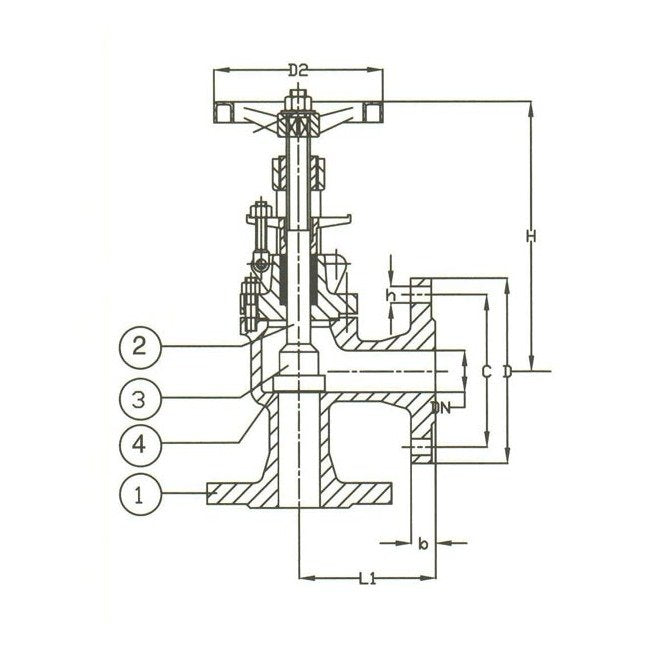

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications D2

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

115 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

040

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

9.10 kg
