DIN Angle Valve PN16 Cast Steel
DIN Angle Valve PN16 Cast Steel
SKU:VAL-333b1d
Durable DIN Angle Valve PN16 Cast Steel for industrial applications, meets ISO5752 and DIN2501-PN16 standards. Handwheel actuator for easy operation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DIN Angle Valve PN16 Cast Steel
$99.99
Quantity: 1
Claim Your Seller Account
DIN Angle Valve PN16 Cast Steel
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

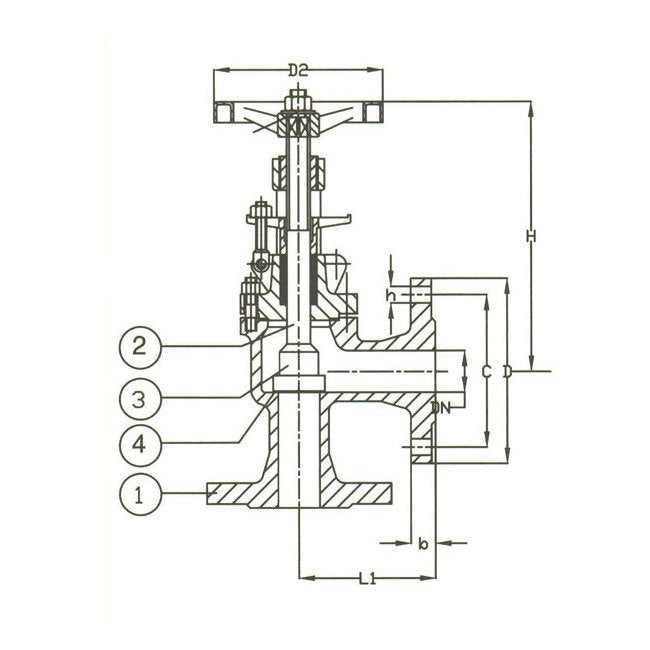

The DIN Angle Valve PN16 Cast Steel is a premium valve designed for industrial applications requiring durability and reliability. Constructed with a Cast Steel body, Brass seat, Stainless Steel disc, and Brass stem, this valve ensures optimal performance and longevity. It meets ISO5752 Series 8 standards and DIN2501-PN16 flange requirements, making it ideal for institutional settings. With a Handwheel actuator and Flanged Drilled connection, this valve offers ease of operation and installation.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
130 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
90 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
015
Specifications Stem Material
Brass
Specifications T
14 mm
Specifications Weight
3.9 kg
